Product picture |
PartNumber |
Describe & Features
请选择
请选择
1CH 10MHz Operational Amplifier
1CH 20MHz Operational Amplifier
1CH 40V Zero-Drift Operational Amplifier
1CH General Operational Amplifier
1CH Zero-Drift Operational Amplifier
1CH/2CH 18V presion, low noise Operational Amplifier
1MHz, RRIO, CMOS Operational Amplifier
2CH 10MHz Operational Amplifier
2CH 17uA Operational Amplifier
2CH 20MHz Operational Amplifier
2CH 250MHz Operational Amplifier
2CH 36V Bipolar Operational Amplifier
2CH 36V General Operational Amplifier
2CH 36V,15V/us Operational Amplifier
2CH General Operational Amplifier
2CH Zero-Drift Operational Amplifier
36V Industry-Standard Operational Amplifiers
4CH 10MHz Operational Amplifier
4CH 250MHz Operational Amplifier
4CH 36V General Operational Amplifier
4CH 36V,15V/us Operational Amplifier
4CH General Operational Amplifier
Automotive-grade 1CH 10MHz Operational Amplifier
Automotive-grade 2CH 10MHz Operational Amplifier
Automotive-grade 4CH 10MHz Operational Amplifier
Precision, low noise, low input bias current operational amplifier
|
VCC (V)
请选择
请选择
1.8~5.5
2.1~5.5
2.25~18
2.5~5.5
2.7~36
2.7~5.5
3~36
4.5~30
4.5~40
5~36
|
IQ/Amp (μA)
请选择
请选择
17
60
220
250
290
450
550
700
770
1500
2100
2400
2800
3200
5400
5500
10000
|
VOS (μV)
请选择
请选择
0.008
2.5
5
10
±0.8
±1
±100
±15(max)
±1500
±2
±2000
±25(max)
±25/±150
±250
±300
±400
±60
±800
|
ΔVOS/ΔT (μV/℃)
请选择
请选择
0.3
±0.005
±0.02
±0.03
±0.05
±0.3
±0.5
±0.6
±1.5
±2
±2.7
±4
±5
±7
|
IB (pA)
请选择
请选择
/
±0.001
±0.01
±0.03
±1
±10
±100
±20
±20000
±25
±30
±30000
±40
±40000
±5
±70
±8
|
GBP(MHz)
请选择
请选择
0.35
0.7
1
1.5
2
3
3.5
10
12
20
43
250
|
SR(V/μs)
请选择
请选择
0.16
0.3
0.5
0.6
0.8
1.5
2
5
6
10
12
12.5
15
27
180
|
En@0.1~10Hz (μVPP)
请选择
请选择
/
0.18
0.2
0.55
1.1
1.5
1.6
2.8
3
4.7
6
|
en@1kHz (nV/√Hz)
请选择
请选择
/
2
4
6
8.5
9
16
25
30
40
55
70
75
|
Package
请选择
请选择
DFN4(0.8x0.8)/ SOT23-5/SC70-5/ SOP8
SOP14
SOP14/TSSOP14
SOP8
SOP8/DFN8
SOP8/MSOP8
SOP8/MSOP8/ DFN8
SOP8/MSOP8/ TSOT23-8
SOT23-5
SOT23-5/SC70-5/ SOP8/MSOP8
SOT23-5/SOP8
TSSOP14
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ET85934M | 4CH 36V,15V/us Operational Amplifier | 3~36 | 700 | ±100 | ±2 | ±25 | 3.5 | 15 | 1.5 | 30 | SOP14 |
|
ET85302M/U/Y | 2CH 17uA Operational Amplifier | 1.8~5.5 | 17 | ±2 | ±0.02 | ±70 | 0.35 | 0.16 | 1.1 | 55 | SOP8/MSOP8/ DFN8 |
|
ET852SXXX | 1CH/2CH 18V presion, low noise Operational Amplifier | 2.25~18 | 2800 | ±25/±150 | ±0.3 | ±30 | 20 | 12 | / | 2 | SOP8/MSOP8 |
|
|
ET856SXXX | 1CH/2CH 18V presion, low noise Operational Amplifier | 2.25~18 | 5500 | ±25/±150 | ±0.3 | ±40 | 43 | 27 | / | 4 | SOP8/MSOP8 |
|
|
LM358M | 2CH 36V Bipolar Operational Amplifier | 3~36 | 250 | 10 | ±7 | ±20 | 0.7 | 0.3 | / | 70 | SOP8 |
|
|
ETQ85601EA | Automotive-grade 1CH 10MHz Operational Amplifier | 1.8~5.5 | 550 | 2.5 | ±0.5 | ±0.001 | 10 | 6 | 4.7 | 16 | SOT23-5 |
|
|
ET85522M | 2CH Zero-Drift Operational Amplifier | 2.5~5.5 | 2100 | 0.008 | ±0.02 | ±0.03 | 10 | 5 | 0.18 | 9 | SOP8 |
|
|
ET324M/V | 4CH General Operational Amplifier | 2.1~5.5 | 60 | 5 | ±2.7 | ±0.01 | 1 | 0.6 | 6 | 25 | SOP14/TSSOP14 |
|
ET85702M/Y1 | 2CH 250MHz Operational Amplifier | 2.5~5.5 | 3200 | ±1500 | ±4 | / | 250 | 180 | / | / | SOP8/DFN8 |
|
ET358M/U/Y1 | 2CH General Operational Amplifier | 2.1~5.5 | 60 | ±800 | ±2.7 | ±10 | 1 | 0.6 | 6 | 25 | SOP8/MSOP8 |
|
ET85604M/V/Y | 4CH 10MHz Operational Amplifier | 1.8~5.5 | 550 | ±300 | ±0.5 | ±1 | 10 | 6 | 4.7 | 16 | SOP14/TSSOP14 |
|
ET324 | 1MHz, RRIO, CMOS Operational Amplifier | 2.1~5.5 | 60 | ±0.8 | ±2.7 | ±10 | 1 | 0.6 | 6 | 25 | SOP14/TSSOP14 |
|
ETQ85601 | Automotive-grade 1CH 10MHz Operational Amplifier | 1.8~5.5 | 550 | ±300 | ±0.5 | ±1 | 10 | 6 | 4.7 | 16 | SOT23-5 |
|
ET85602M/U/E/Y1/Y2 | 2CH 10MHz Operational Amplifier | 1.8~5.5 | 550 | ±300 | ±0.5 | ±1 | 10 | 6 | 4.7 | 16 | SOP8/MSOP8/ TSOT23-8 |
|
ET85002M/U | 2CH General Operational Amplifier | 1.8~5.5 | 60 | ±400 | ±0.6 | ±5 | 1 | 2 | 4.7 | 30 | SOP8/MSOP8 |
|
ET85001D/E/EA/SC/SCA/M | 1CH General Operational Amplifier | 1.8~5.5 | 60 | ±400 | ±0.6 | ±5 | 1 | 2 | 4.7 | 30 | DFN4(0.8x0.8)/ SOT23-5/SC70-5/ SOP8 |
|
ET856S2M/U | Precision, low noise, low input bias current operational amplifier | 4.5~30 | 10000 | ±25(max) | 0.3 | ±40000 | 43 | 27 | / | 4 | SOP8/MSOP8 |
|
ET856S1M/U | Precision, low noise, low input bias current operational amplifier | 4.5~30 | 5500 | ±25(max) | 0.3 | ±40000 | 43 | 27 | / | 4 | SOP8/MSOP8 |
|
ET852S2M/U | Precision, low noise, low input bias current operational amplifier | 4.5~30 | 5400 | ±25(max) | 0.3 | ±30000 | 20 | 12 | / | 2 | SOP8/MSOP8 |
|
ET852S1M/U | Precision, low noise, low input bias current operational amplifier | 4.5~30 | 2800 | ±25(max) | 0.3 | ±30000 | 20 | 12 | / | 2 | SOP8/MSOP8 |
|
ET85B12M/U | 36V Industry-Standard Operational Amplifiers | 3~36 | 290 | ±2000 | ±5 | ±20000 | 0.7 | 0.3 | / | 40 | SOP8/MSOP8 |
|
ET85B11EA/E | 36V Industry-Standard Operational Amplifiers | 3~36 | 290 | ±2000 | ±5 | ±20000 | 0.7 | 0.3 | / | 40 | SOT23-5 |
|
ET85B14M/V | 36V Industry-Standard Operational Amplifiers | 3~36 | 290 | ±2000 | ±5 | ±20000 | 0.7 | 0.3 | / | 40 | SOP14 |
|
LM358 | 36V Industry-Standard Operational Amplifiers | 5~36 | 250 | ±2000 | ±7 | ±20000 | 0.7 | 0.3 | / | 70 | SOP8 |
|
ET85201E/EA | 1CH 20MHz Operational Amplifier | 1.8~5.5 | 1500 | ±60 | ±1.5 | ±1 | 20 | 10 | 2.8 | 8.5 | SOT23-5 |
|

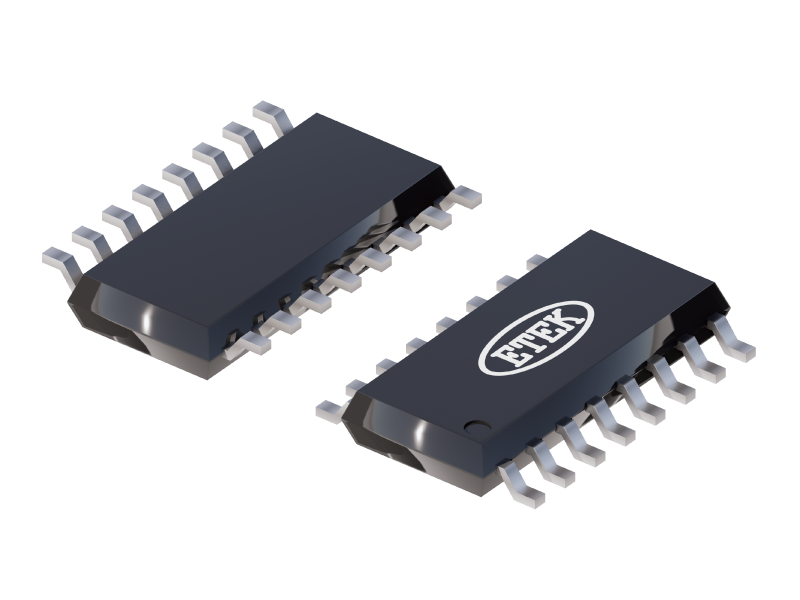

ETQ85604M | Automotive-grade 4CH 10MHz Operational Amplifier | 1.8~5.5 | 550 | ±300 | ±0.5 | ±1 | 10 | 6 | 4.7 | 16 | SOP14 |
|

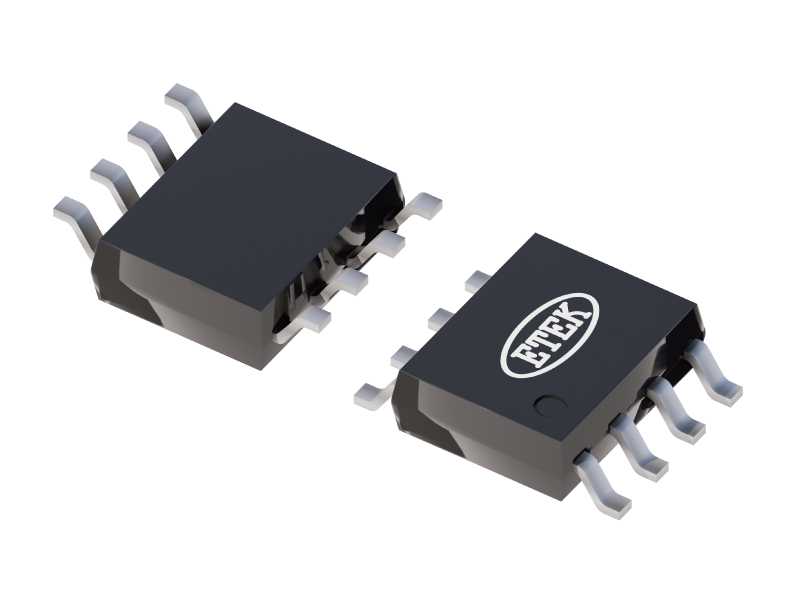

ETQ85602M | Automotive-grade 2CH 10MHz Operational Amplifier | 1.8~5.5 | 550 | ±300 | ±0.5 | ±1 | 10 | 6 | 4.7 | 16 | SOP8 |
|
ET85932M | 2CH 36V,15V/us Operational Amplifier | 3~36 | 700 | ±100 | ±2 | ±25 | 3.5 | 15 | 1.5 | 30 | SOP8 |
|
ET85911M | 1CH 40V Zero-Drift Operational Amplifier | 4.5~40 | 2400 | ±15(max) | ±0.05 | ±100 | 12 | 12.5 | 0.2 | 6 | SOP8 |
|
ET85904M/V | 4CH 36V General Operational Amplifier | 2.7~36 | 450 | ±250 | ±0.3 | ±8 | 3 | 1.5 | 3 | 25 | SOP14/TSSOP14 |
|
ET85902M/U | 2CH 36V General Operational Amplifier | 2.7~36 | 450 | ±250 | ±0.3 | ±8 | 3 | 1.5 | 3 | 25 | SOP8/MSOP8 |
|

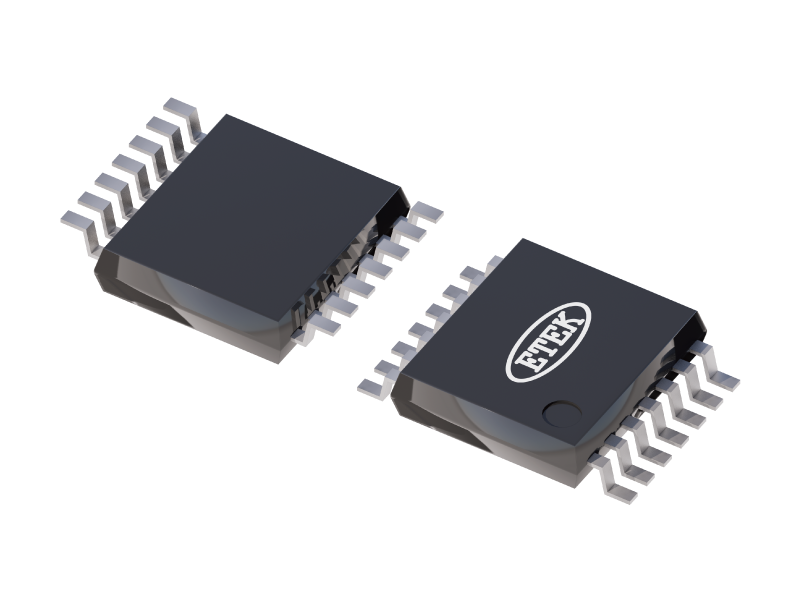

ET85704V | 4CH 250MHz Operational Amplifier | 2.5~5.5 | 3200 | ±1500 | ±4 | / | 250 | 180 | / | / | TSSOP14 |
|
ET85702M | 2CH 250MHz Operational Amplifier | 2.5~5.5 | 3200 | ±1500 | ±4 | / | 250 | 180 | / | / | SOP8 |
|
ET85601E/EA/SC/SCA/M/U | 1CH 10MHz Operational Amplifier | 1.8~5.5 | 550 | ±300 | ±0.5 | ±1 | 10 | 6 | 4.7 | 16 | SOT23-5/SC70-5/ SOP8/MSOP8 |
|
ET85511E/EA | 1CH Zero-Drift Operational Amplifier | 2.1~5.5 | 220 | ±2 | ±0.03 | ±100 | 2 | 0.8 | 0.55 | 30 | SOT23-5 |
|
ET85502M/U | 2CH Zero-Drift Operational Amplifier | 2.7~5.5 | 770 | ±1 | ±0.005 | ±20 | 1.5 | 0.5 | 1.6 | 75 | SOP8/MSOP8 |
|
ET85501E/EA/M | 1CH Zero-Drift Operational Amplifier | 2.7~5.5 | 770 | ±1 | ±0.005 | ±20 | 1.5 | 0.5 | 1.6 | 75 | SOT23-5/SOP8 |
|
ET85202M | 2CH 20MHz Operational Amplifier | 1.8~5.5 | 1500 | ±60 | ±1.5 | ±1 | 20 | 10 | 2.8 | 8.5 | SOP8 |
