Product picture |
PartNumber |
Describe & Features
请选择
请选择
1 Bit GPIO Level Shifter
2 Bit GPIO Level Shifter
2 Bit Level Shifter for I2C
4 Bit GPIO Level Shifter
4 Bit Level Shifter
4 Bit Level Shifter for I2C
8 Bit GPIO Level Shifter
8 Bit Level Bidirectional Translator
SD Card Level Shifter
SD3.0 Level Shifter
SIM Card Level Shifter
|
Channel
请选择
请选择
1
2
3
4
6
8
|
VCCA (V)
请选择
请选择
0.8~3.6
0.95~3.3
1.08~1.98
1.08~3.6
1.08~5.0
1.1~2.0
1.1~5.0
1.2~5.0
1.2~5.5
1.65~3.6
1.65~5.5
|
VCCB (V)
请选择
请选择
0.8~3.6
1.08~5.0
1.1~5.0
1.2~5.0
1.2~5.5
1.62~3.6
1.65~5.5
1.7~3.6
1.8~5.0
2.3~5.5
2.9~3.6
|
Data Rate
请选择
请选择
1/14 Mbps
10 MHz
100 Mbps
2/24 Mbps
204 MHz
208 MHz
24 Mbps
380 Mbps
420 Mbps
500 Mbps
60 Mbps
|
ICC (μA)
请选择
请选择
0.1
＜1.0
＜10
＜100
＜11.5
＜2.5
＜21
＜5
＜5.0
＜55
＜70
|
Direction
请选择
请选择
Bidirectional
Configurable
Fixed/Bidirectional
＜11.5
|
Logic Output
请选择
请选择
Open-Drain
Open-Drain/Push-Pull
Push-Pull
|
Package
请选择
请选择
DFN8(1.4X1)
FOWLP9
MSOP8/VSSOP8
QFN10
QFN12
QFN12/QFN14
QFN16L
QFN8/DFN8/TDFN8/SOT23-8
SC70-6/SOT23-6/DFN6(1X1.45)
SOP16/TSSOP16/QFN16
SSOP24/TSSOP24/QFN24
TSSOP16/SOP16/QFN16
TSSOP20
TSSOP24/QFN24
TSSOP8
TSSOP8/VSSOP8/MSOP8/SOT23-8
WLCSP12(0.5 Pitch)/ QFN12/TSSOP14
WLCSP16(0.35 Pitch)
WLCSP20(0.4 Pitch)
|
|---|---|---|---|---|---|---|---|---|---|---|
|
ET2104 | 4 Bit Level Shifter for I2C | 4 | 1.65~5.5 | 1.65~5.5 | 1/14 Mbps | ＜5 | Bidirectional | Open-Drain/Push-Pull | WLCSP12(0.5 Pitch)/ QFN12/TSSOP14 |
|
ET74AVCH4T774 | 4 Bit GPIO Level Shifter | 4 | 0.8~3.6 | 0.8~3.6 | 380 Mbps | ＜55 | Configurable | Push-Pull | QFN16L |
|

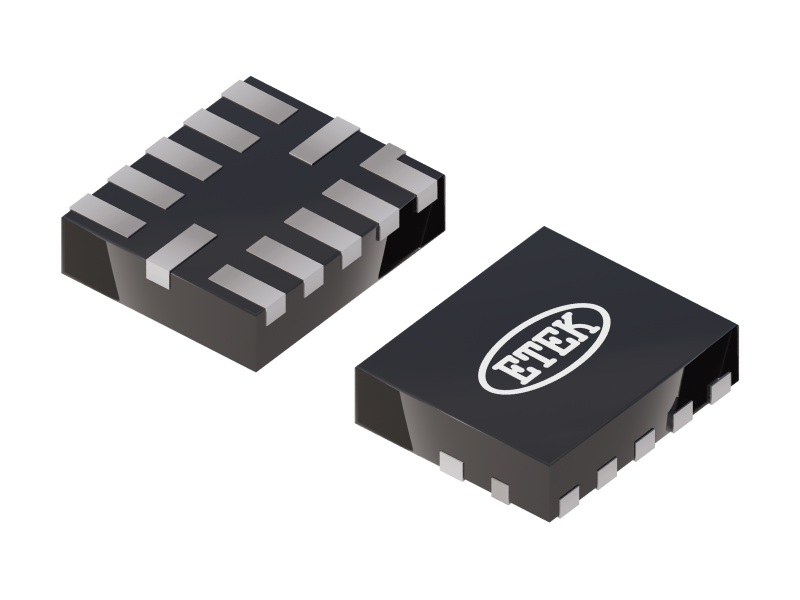

ETS0104Y3 | 4 Bit GPIO Level Shifter | 4 | 1.08~3.6 | 1.65~5.5 | 60 Mbps | ＜5 | Bidirectional | Open-Drain/Push-Pull | QFN12 |
|

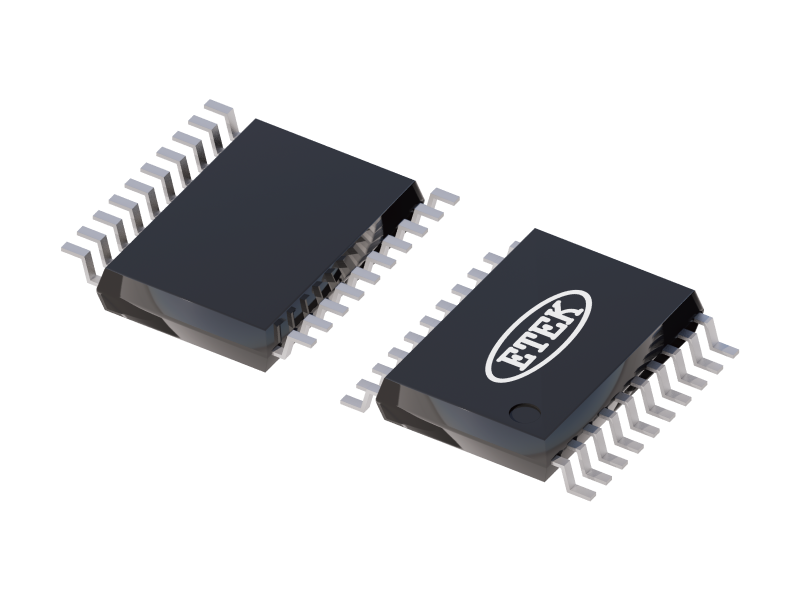

ETS0108 | 8 Bit Level Bidirectional Translator | 8 | 1.65~3.6 | 2.3~5.5 | 2/24 Mbps | ＜21 | Bidirectional | Open-Drain/Push-Pull | TSSOP20 |
|
ETF0102 | 2 Bit GPIO Level Shifter | 2 | 0.95~3.3 | 1.8~5.0 | 100 Mbps | 0.1 | Bidirectional | Open-Drain | DFN8(1.4X1) |
|
ETS0104AY | 4 Bit GPIO Level Shifter | 4 | 1.65~3.6 | 2.3~5.5 | 24 Mbps | ＜5 | Bidirectional | Open-Drain/Push-Pull | QFN12 |
|

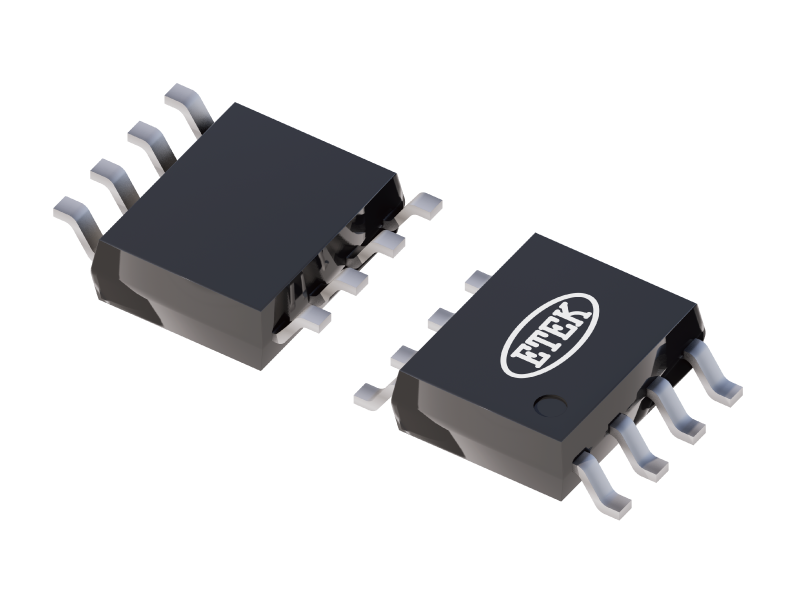

ETQF0102V | 2 Bit GPIO Level Shifter | 2 | 0.95~3.3 | 1.8~5.0 | 100 Mbps | 0.1 | Bidirectional | Open-Drain | TSSOP8 |
|
ETQ74AVCH4T245 | 4 Bit GPIO Level Shifter | 4 | 0.8~3.6 | 0.8~3.6 | 380 Mbps | ＜70 | Configurable | Push-Pull | SOP16/TSSOP16/QFN16 |
|

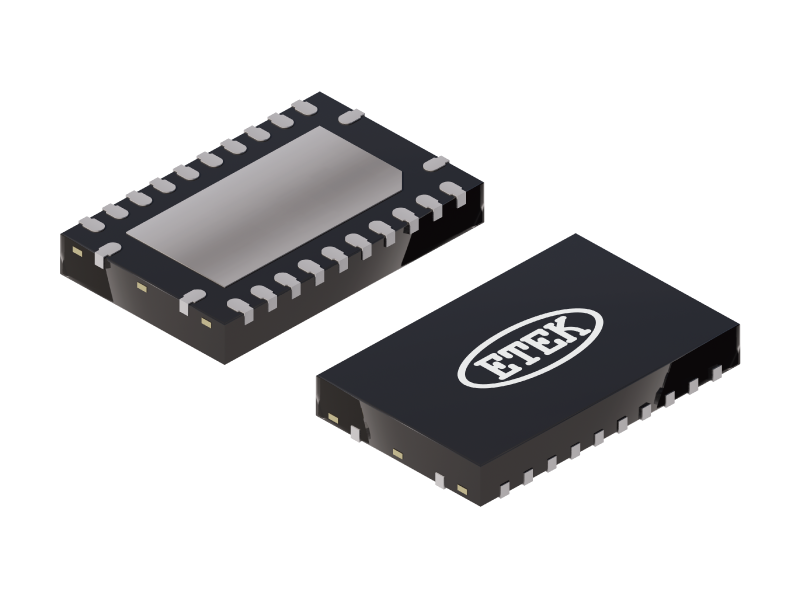

ET74LVCH8T245 | 8 Bit GPIO Level Shifter | 8 | 1.2~5.5 | 1.2~5.5 | 420 Mbps | ＜70 | Configurable | Push-Pull | TSSOP24/QFN24 |
|

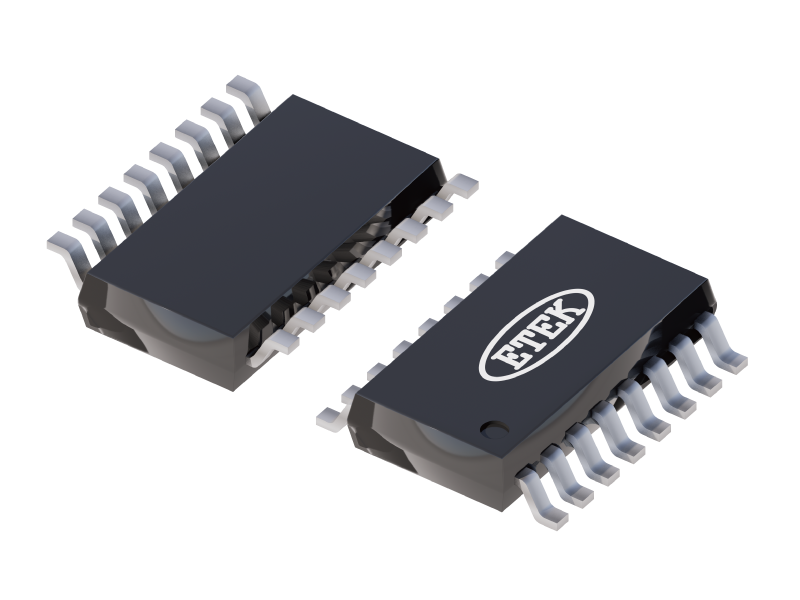

ET74LVCH4T245 | 4 Bit GPIO Level Shifter | 4 | 1.2~5.5 | 1.2~5.5 | 420 Mbps | ＜70 | Configurable | Push-Pull | TSSOP16/SOP16/QFN16 |
|
ET74AVCH8T245 | 8 Bit GPIO Level Shifter | 8 | 0.8~3.6 | 0.8~3.6 | 380 Mbps | ＜70 | Configurable | Push-Pull | SSOP24/TSSOP24/QFN24 |
|
ET74AVCH4T245 | 4 Bit GPIO Level Shifter | 4 | 0.8~3.6 | 0.8~3.6 | 380 Mbps | ＜70 | Configurable | Push-Pull | SOP16/TSSOP16/QFN16 |
|
ET2102 | 2 Bit Level Shifter for I2C | 2 | 1.65~5.5 | 1.65~5.5 | 1/14 Mbps | ＜5 | Bidirectional | Open-Drain/Push-Pull | QFN8/DFN8/TDFN8/SOT23-8 |
|
ET5014L | 4 Bit Level Shifter | 4 | 1.08~5.0 | 1.08~5.0 | 100 Mbps | ＜1.0 | Bidirectional | Push-Pull | QFN12 |
|

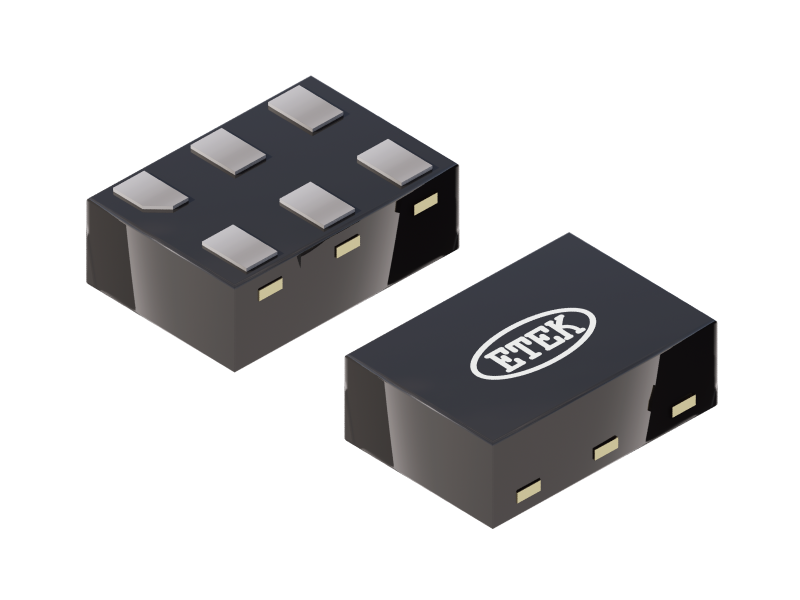

ET74LVCH1T45 | 1 Bit GPIO Level Shifter | 1 | 1.2~5.5 | 1.2~5.5 | 420 Mbps | ＜11.5 | ＜11.5 | Push-Pull | SC70-6/SOT23-6/DFN6(1X1.45) |
|

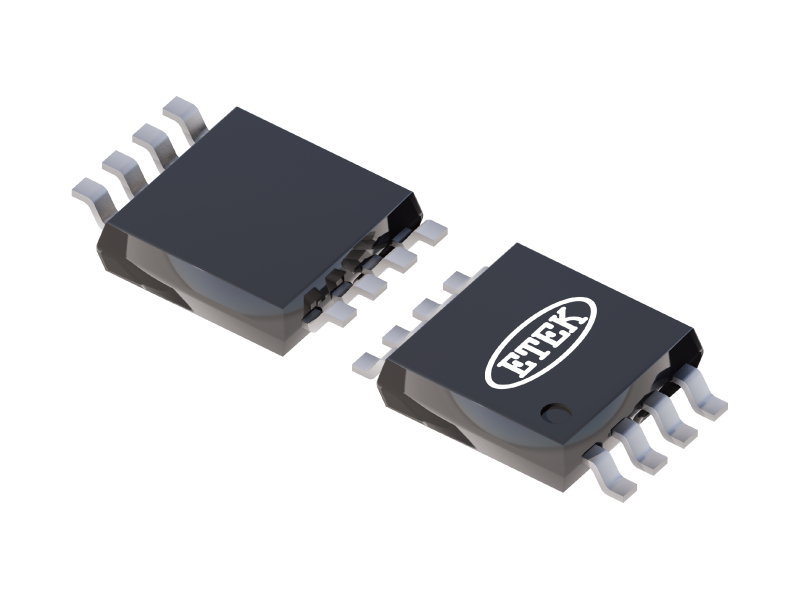

ET74LVCH2T45 | 2 Bit GPIO Level Shifter | 2 | 1.2~5.5 | 1.2~5.5 | 420 Mbps | ＜11.5 | Configurable | Push-Pull | MSOP8/VSSOP8 |
|
ET74AVCH2T45 | 2 Bit GPIO Level Shifter | 2 | 0.8~3.6 | 0.8~3.6 | 500 Mbps | ＜11.5 | Configurable | Push-Pull | TSSOP8/VSSOP8/MSOP8/SOT23-8 |
|
ET4559SX | SIM Card Level Shifter | 3 | 1.08~1.98 | 1.62~3.6 | 10 MHz | ＜10 | Fixed/Bidirectional | Push-Pull | FOWLP9 |
|

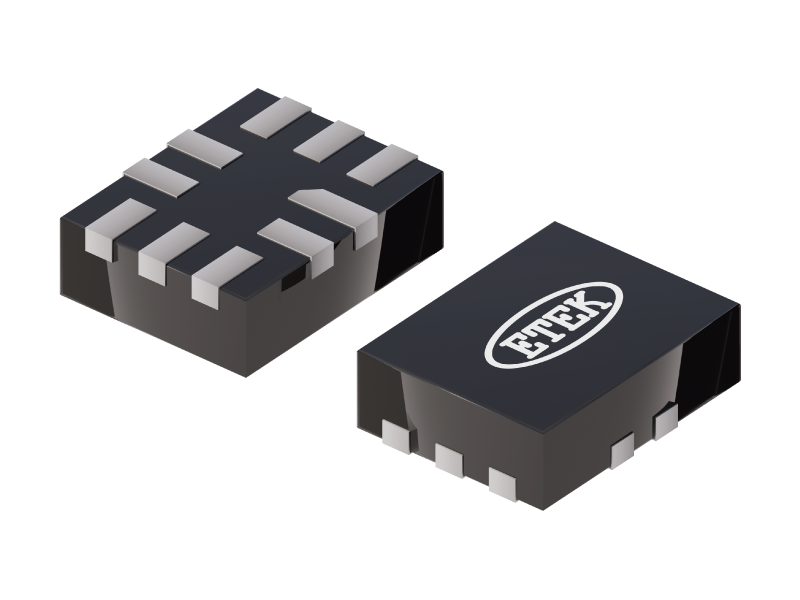

ET4557SX | SIM Card Level Shifter | 3 | 1.08~1.98 | 1.62~3.6 | 10 MHz | ＜10 | Fixed/Bidirectional | Push-Pull | QFN10 |
|
ET74AVCH1T45 | 1 Bit GPIO Level Shifter | 1 | 0.8~3.6 | 0.8~3.6 | 500 Mbps | ＜11.5 | Configurable | Push-Pull | SC70-6/SOT23-6/DFN6(1X1.45) |
|

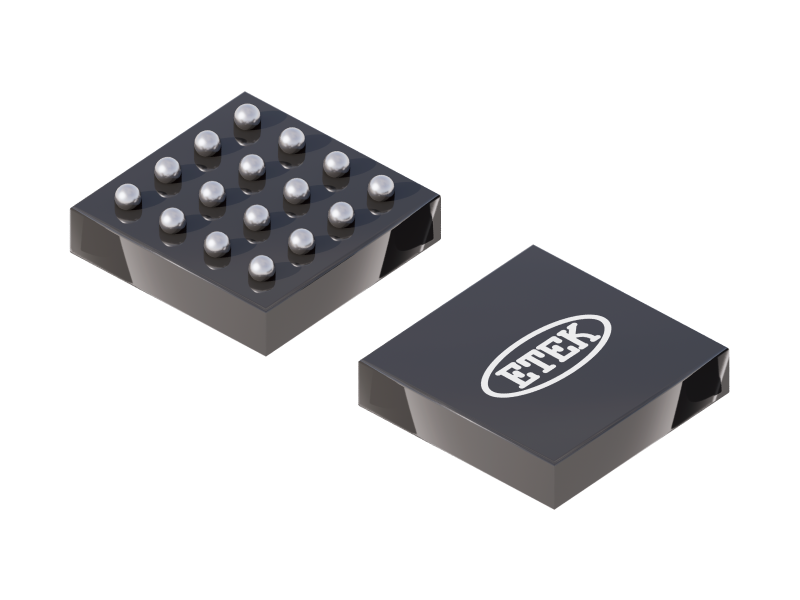

ET4860 | SD3.0 Level Shifter | 6 | 1.1~2.0 | 1.7~3.6 | 208 MHz | ＜100 | Bidirectional | Push-Pull | WLCSP16(0.35 Pitch) |
|
ETQ74LVCH8T245 | 8 Bit GPIO Level Shifter | 8 | 1.2~5.5 | 1.2~5.5 | 420 Mbps | ＜70 | Configurable | Push-Pull | TSSOP24/QFN24 |
|
ET4557 | SIM Card Level Shifter | 3 | 1.08~1.98 | 1.62~3.6 | 10 MHz | ＜10 | Fixed/Bidirectional | Push-Pull | QFN10 |
|
ET5014AM | 4 Bit Level Shifter | 4 | 1.1~5.0 | 1.1~5.0 | 100 Mbps | ＜5.0 | Bidirectional | Push-Pull | QFN12 |
|

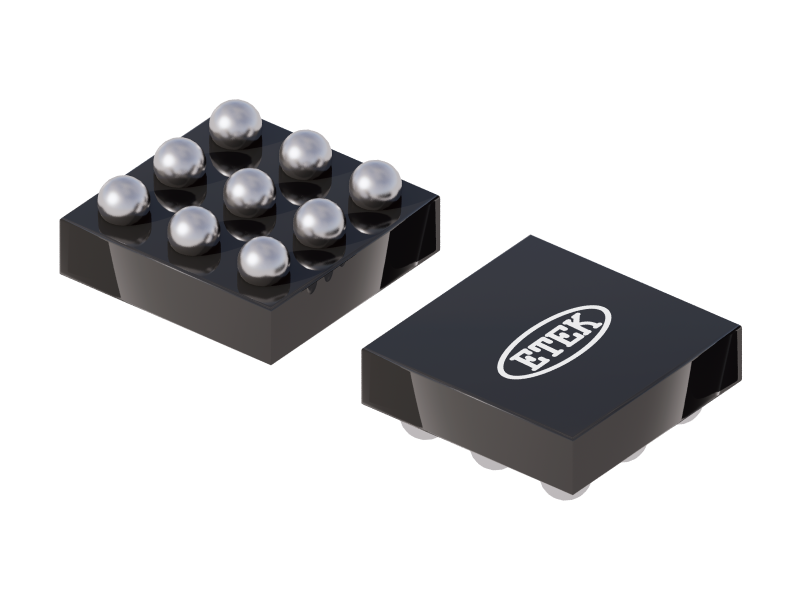

ET4559 | SIM Card Level Shifter | 3 | 1.08~1.98 | 1.62~3.6 | 10 MHz | ＜10 | Fixed/Bidirectional | Push-Pull | FOWLP9 |
|
ET5014 | 4 Bit Level Shifter | 4 | 1.2~5.0 | 1.2~5.0 | 100 Mbps | ＜2.5 | Bidirectional | Push-Pull | QFN12/QFN14 |
|
ET4857 | SD Card Level Shifter | 6 | 1.1~2.0 | 2.9~3.6 | 204 MHz | ＜100 | Bidirectional | Push-Pull | WLCSP20(0.4 Pitch) |
