Product picture |
PartNumber |
Describe & Features
请选择
请选择
10A, 4mΩ Load Switch with Rise Time ADJ
4A Switch with RCB
5.5V 2A 38mΩ Load Switch with Reverse Current Protection and Controlled Turn On
5.5V, 2.2A, 40mΩ, Ultra-Low IQ
5.5V, 2A,38mΩ Load Switch with RCB and Controlled Turn On
5.5V, 3A, TRCB, Auto Discharge
5.5V, 6A, RCB, Ultra-Low Ron
5.5V, 7A Load Switch with Current Monitoring and PG
5.7V, 6A, 16mΩ Load Switch
6CH Load Switch with I2C Control
6V, 3A, 23mΩ, TRCB
6V, 3A, 33mΩ, TRCB
6V, 3A, TRCB, Auto Discharge
6V, 6A, TRCB, Ultra-Low Ron
Dual 6A Load Switch
Low Input Quick Rise 6A Switch
|
Channel
请选择
请选择
1
2
6
|
VIN (V)
请选择
请选择
1.0~5.5
1.2~5.5
1.5~6.0
2.2~6.0
2.3~5.5
VBIAS 2.5~5.7 VIN 0.6~VBIAS
VBIAS 3~5.5 VIN 0.8~3.5
VBIAS1.5~5.5 VIN 0.1~5.5
VCC 3.0~5.5 VIN 0.5~5.5
|
IQ (μA)
请选择
请选择
0.28
0.47
0.5
8
22
30
220
≤1
≤1.2
≤11
|
IOFF (μA)
请选择
请选择
0.1
0.14
0.15
≤0.4
≤1
≤2.3
|
RON (mΩ)
请选择
请选择
4
4.8
5.2
6
10
16
17
18
23
33
35
38
40
52
75
|
IOUT_MAX (A)
请选择
请选择
2
2.0×6CH
2.2
3
3.5
4
6
7
10
|
EN Logic
请选择
请选择
H
L
|
RCB
请选择
请选择
No
Yes
|
Fault Flag
请选择
请选择
No
Yes
|
Package
请选择
请选择
CSP16(0.35 pitch)
DFN14L(3mm×2mm)
DFN4(1.2mmx1.6mm)
DFN8(2mm×2mm)
DFN8(3mm×3mm)
FCQFN4(1mmx1mm)
QFN12(2mm×2mm)
WLCSP12(0.4 Pitch)
WLCSP4(0.4 Pitch)
WLCSP4(0.5 Pitch)
WLCSP6(0.5 Pitch)
WQFN10(1.5mm×2.0mm)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ET3166 | 6CH Load Switch with I2C Control | 6 | 1.2~5.5 | ≤1 | ≤1 | 52 | 2.0×6CH | H | Yes | No | CSP16(0.35 pitch) |
|

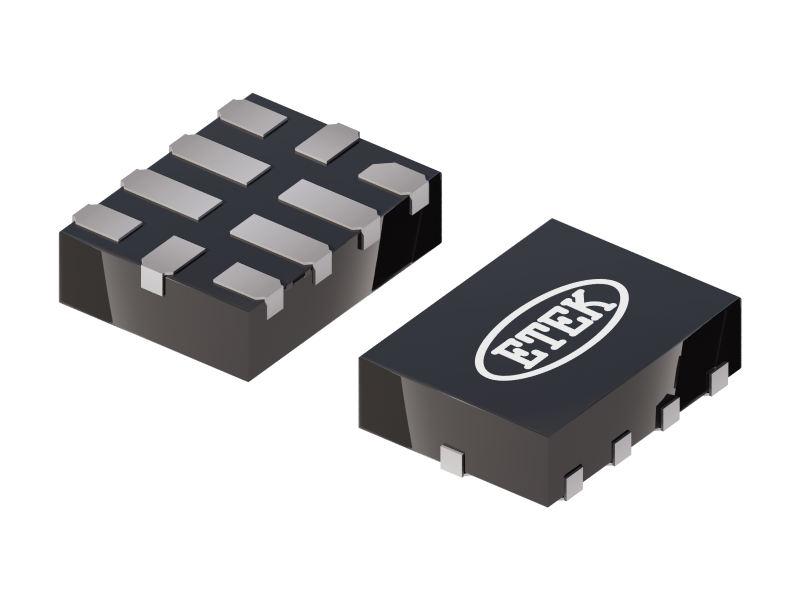

ET3587 | 5.5V, 7A Load Switch with Current Monitoring and PG | 1 | VCC 3.0~5.5 VIN 0.5~5.5 | 220 | ≤1 | 10 | 7 | H | No | Yes | QFN12(2mm×2mm) |
|
|
ET3561X | 5.5V 2A 38mΩ Load Switch with Reverse Current Protection and Controlled Turn On | 1 | 1.0~5.5 | 0.28 | 0.14 | 38 | 2 | H | Yes | No | WLCSP4(0.4 Pitch) |
|

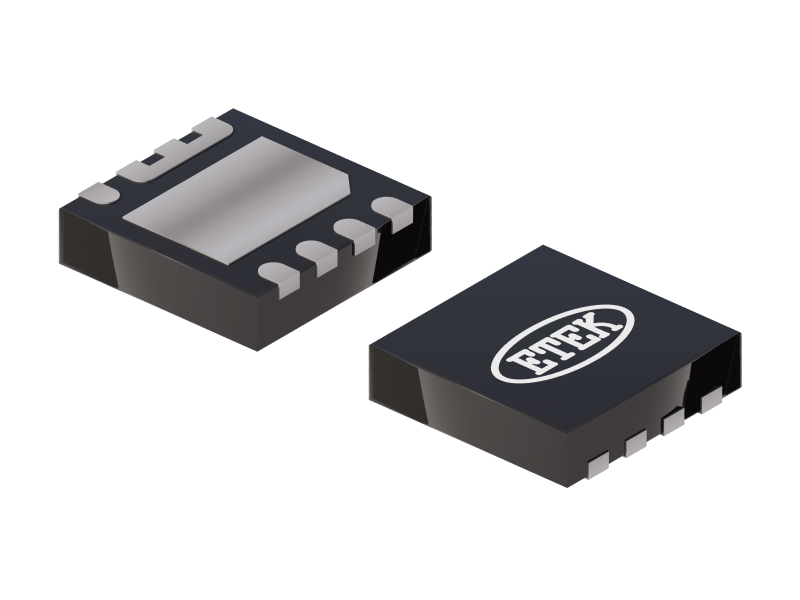

ET3175 | 5.7V, 6A, 16mΩ Load Switch | 1 | VBIAS 2.5~5.7 VIN 0.6~VBIAS | 30 | ≤1 | 16 | 6 | H | No | No | DFN8(2mm×2mm) |
|
ET3159 | 6V, 3A, TRCB, Auto Discharge | 1 | 1.5~6.0 | 8 | ≤1 | 75 | 3 | H | Yes | No | DFN4(1.2mmx1.6mm) |
|
ET35621 | 5.5V, 3A, TRCB, Auto Discharge | 1 | 1.0~5.5 | 0.47 | 0.14 | 35 | 3 | H | Yes | No | WLCSP4(0.5 Pitch) |
|
|
ET3166A | 6CH Load Switch with I2C Control | 6 | 1.2~5.5 | ≤1 | ≤1 | 52 | 2.0×6CH | H | Yes | No | CSP16(0.35 pitch) |
|
ET3561 | 5.5V, 2A,38mΩ Load Switch with RCB and Controlled Turn On | 1 | 1.0~5.5 | 0.28 | 0.14 | 38 | 2 | H | Yes | No | WLCSP4(0.5 Pitch) |
|
ET3158A | 6V, 3A, 33mΩ, TRCB | 1 | 1.5~6.0 | 8 | ≤1 | 33 | 3 | H | Yes | No | DFN4(1.2mmx1.6mm) |
|
ET3565 | 4A Switch with RCB | 1 | 1.0~5.5 | 0.5 | 0.15 | 17 | 4 | H | Yes | No | WLCSP6(0.5 Pitch) |
|
ET3562 | 5.5V, 3A, TRCB, Auto Discharge | 1 | 1.0~5.5 | 0.5 | 0.1 | 35 | 3 | H | Yes | No | WLCSP4(0.5 Pitch) |
|
ET3138 | 5.5V, 2.2A, 40mΩ, Ultra-Low IQ | 1 | 1.2~5.5 | 0.5 | 0.1 | 40 | 2.2 | H | No | No | WLCSP4(0.4 Pitch) |
|
ET3140 | 5.5V, 2.2A, 40mΩ, Ultra-Low IQ | 1 | 1.2~5.5 | 0.5 | 0.1 | 40 | 2.2 | H | No | No | FCQFN4(1mmx1mm) |
|
ET3176 | Dual 6A Load Switch | 2 | VBIAS 2.5~5.7 VIN 0.6~VBIAS | 22 | ≤2.3 | 18 | 6 | H | No | No | DFN14L(3mm×2mm) |
|
ET3164 | 10A, 4mΩ Load Switch with Rise Time ADJ | 1 | VBIAS1.5~5.5 VIN 0.1~5.5 | 8 | 0.1 | 5.2 | 10 | H | No | Yes | WQFN10(1.5mm×2.0mm) |
|
ET3161 | Low Input Quick Rise 6A Switch | 1 | VBIAS 3~5.5 VIN 0.8~3.5 | ≤1 | ≤0.4 | 4.8 | 6 | H | No | No | DFN8(3mm×3mm) |
|
ET3153 | 5.5V, 6A, RCB, Ultra-Low Ron | 1 | 2.3~5.5 | ≤1 | ≤1 | 6 | 6 | L | Yes | No | WLCSP12(0.4 Pitch) |
|
ET3152 | 6V, 6A, TRCB, Ultra-Low Ron | 1 | 2.2~6.0 | ≤1.2 | ≤1 | 4 | 6 | H | Yes | Yes | WLCSP12(0.4 Pitch) |
|
ET3148A | 6V, 3A, 23mΩ, TRCB | 1 | 1.5~6.0 | ≤11 | ≤1 | 23 | 3.5 | H | Yes | No | WLCSP6(0.5 Pitch) |
|
ET3137 | 5.5V, 2.2A, 40mΩ, Ultra-Low IQ | 1 | 1.2~5.5 | 0.5 | 0.1 | 40 | 2.2 | L | No | No | WLCSP4(0.4 Pitch) |
