Product picture |
PartNumber |
Describe
请选择
请选择
12CH with Auto-Breathing
16CH 128 Step Dimming
16CH High Speed LED Drvier
16CH with a seven-band audio equalizer
18CH 128 Step Dimming
24CH Constant Current LED Driver，Supports independent brightness control for RGB LED
36CH 256 Step Dimming，Open and short circuit detection function
3CH with Auto-Breathing
54 Dot with Auto-Breathing
9CH with Auto-Breathing
|
VIN (V)
请选择
请选择
2.4~4.5
2.4~5.5
2.7~5.5
3~5.5
|
ISHDN (μA)
请选择
请选择
/
0.1
≤1
≤5
≤6
≤7
|
CH
请选择
请选择
3
12
16
18
24
36
6x9
9
|
Dimming Levels
请选择
请选择
/
128 Current each CH
128 Current each dot
192 Current each CH
256 Current each CH
256 Current each RGB
|
IMAX/CH (mA)
请选择
请选择
24
35
40
42.6
45
48
|
Interface Control
请选择
请选择
4-wire Serial
I2C
|
Package
请选择
请选择
DFN8(1.5×1.5)
QFN20(3×3)
QFN24(4×4)
QFN24(4×4)/SSOP24
QFN24（4.0x4.0）
QFN32(4×4)
QFN44(5×5)/LQFP48(7×7)
SSOP24-3(6×13)/SSOP24-2(3.9×8.6)
|
|---|---|---|---|---|---|---|---|---|---|
|
ET62024 | 24CH Constant Current LED Driver，Supports independent brightness control for RGB LED | 2.7~5.5 | ≤1 | 24 | 256 Current each RGB | 35 | I2C | QFN32(4×4) |
|

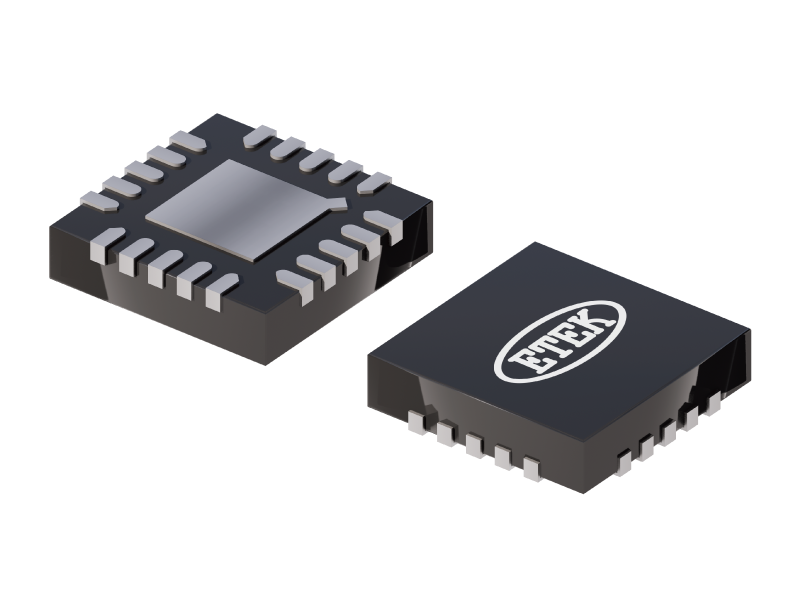

ET6312B | 12CH with Auto-Breathing | 2.7~5.5 | 0.1 | 12 | 192 Current each CH | 48 | I2C | QFN20(3×3) |
|
ET6034AY | 16CH 128 Step Dimming | 2.7~5.5 | ≤5 | 16 | 128 Current each CH | 45 | I2C | QFN24(4×4) |
|

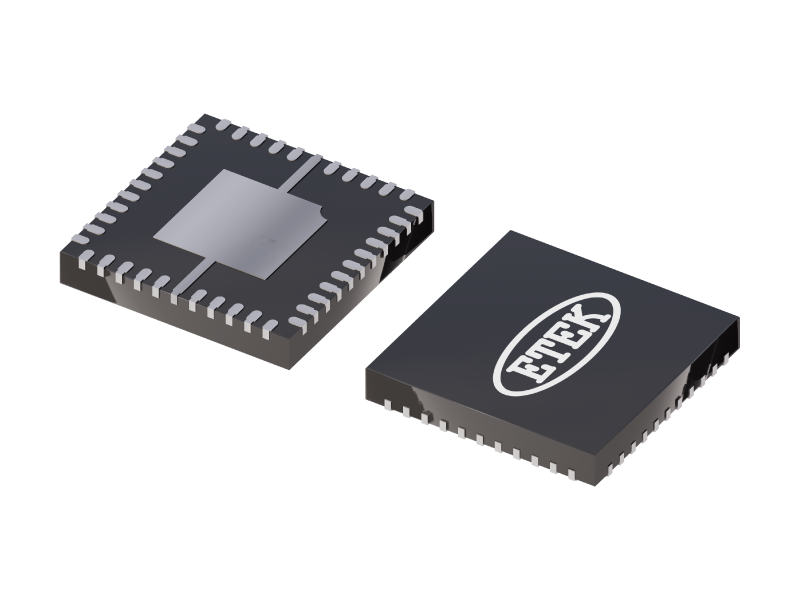

ET6038 | 36CH 256 Step Dimming，Open and short circuit detection function | 2.7~5.5 | ≤6 | 36 | 256 Current each CH | 42.6 | I2C | QFN44(5×5)/LQFP48(7×7) |
|
|
ET6298 | 16CH with a seven-band audio equalizer | 2.4~5.5 | / | 16 | 256 Current each CH | 40 | I2C | QFN24（4.0x4.0） |
|
ET6034A | 16CH 128 Step Dimming | 2.7~5.5 | ≤5 | 16 | 128 Current each CH | 45 | I2C | QFN24(4×4) |
|
ET6024/S | 16CH High Speed LED Drvier | 3~5.5 | / | 16 | / | 45 | 4-wire Serial | SSOP24-3(6×13)/SSOP24-2(3.9×8.6) |
|
ET6296 | 54 Dot with Auto-Breathing | 2.4~4.5 | ≤7 | 6x9 | 128 Current each dot | 40 | I2C | QFN24(4×4) |
|

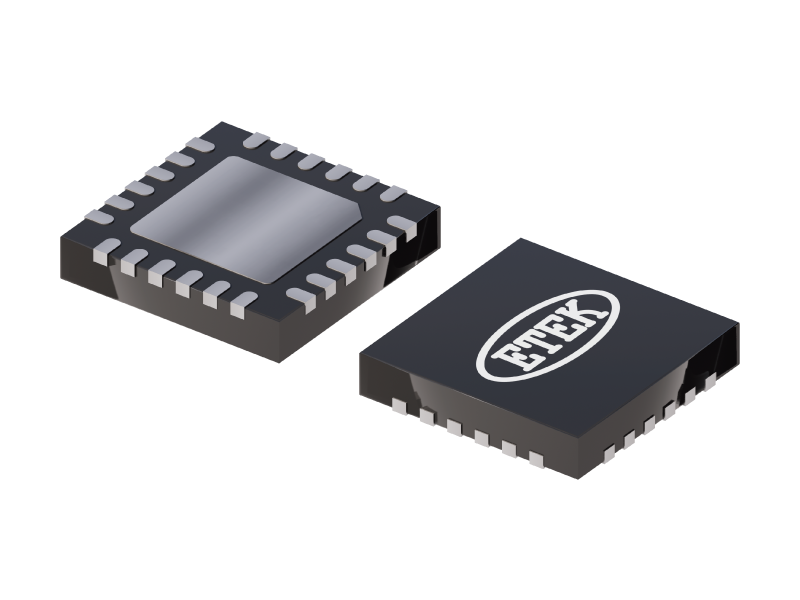

ET6037Y | 18CH 128 Step Dimming | 2.7~5.5 | ≤5 | 18 | 128 Current each CH | 45 | I2C | QFN24(4×4)/SSOP24 |
|
ET6309 | 9CH with Auto-Breathing | 2.7~5.5 | 0.1 | 9 | 192 Current each CH | 48 | I2C | QFN24(4×4) |
|

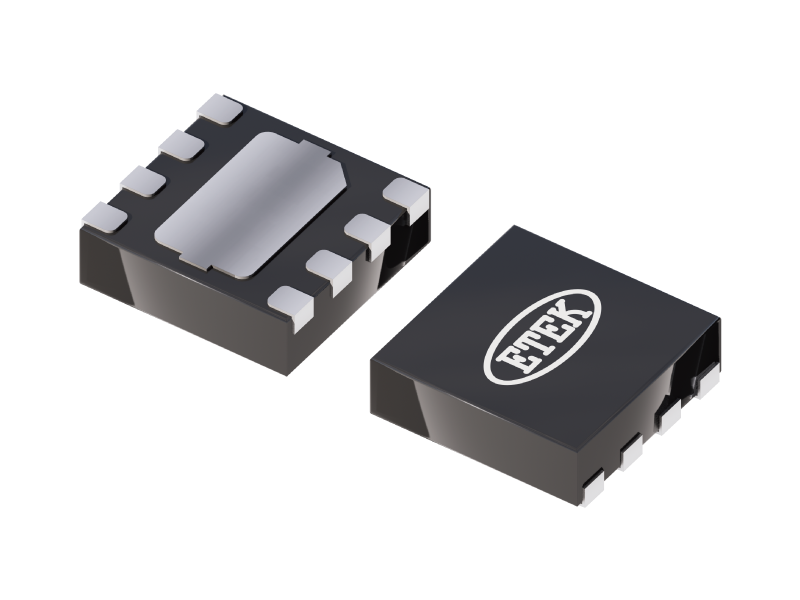

ET6326 | 3CH with Auto-Breathing | 2.7~5.5 | 0.1 | 3 | 192 Current each CH | 24 | I2C | DFN8(1.5×1.5) |
