Product picture |
PartNumber |
Features
请选择
请选择
1000mA, Dual-rail Very Low Dropout
1500mA, Dual-rail Very Low Dropout
2000mA, Low Noise(6uV), With PG, SS
3000mA, Low Noise(6uV), With PG, SS
3000mA, Very Low Dropout, With PG
3000mA,Very Low Dropout, With PG, SS
4000mA, Low Noise(6uV), With PG, SS
800mA, Dual-rail Very Low Dropout
800mA, Dual-rail Very Low Dropout，Fixed Output
Sink and Source DDR Termination Regulator
|
VBIAS(V)
请选择
请选择
2.2~5.5
2.375~5.5
2.4~5.5
2.7~5.5
3.0~5.5
|
VIN(V)
请选择
请选择
0.5~5.5
0.5~VBIAS
0.8~5.5
1.0~5.5
1.1~3.5
1.1~5.5
|
VOUT (V)
请选择
请选择
1.05/1.1/1.2
ADJ
ADJ/0.5~3.0
ADJ/0.8~3.6
ADJ/0.8~5.0
ADJ/1.0~3.6
|
IOUT(mA)
请选择
请选择
800
1000
1500
2000
3000
4000
|
Dropout Voltage @IOUT (mV)
请选择
请选择
-
120@1.0V
125@0.8V
130@0.8V
135@1.0V
170@0.8V
200@1.1V
220@1.2V
240@1.2V
40@1.05V
80@1.0V
95@1.0V
|
IQ (μA)
请选择
请选择
35
60
80
100
600
1300
2300
|
PSRR@1kHz (dB)
请选择
请选择
-
40
70
75
80
|
Noise (μVRMS)
请选择
请选择
-
18×VOUT
30×VOUT
45×VOUT
50×VOUT
6.0
60×VOUT
|
Package
请选择
请选择
DFN10(3.0X3.0)
DFN20(3.0X3.0)
DFN4(1.2X1.2)
DFN6(1.2X1.2)
ESOP8
QFN20(5.0X5.0)
WLCSP6(0.4 Pitch)
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|

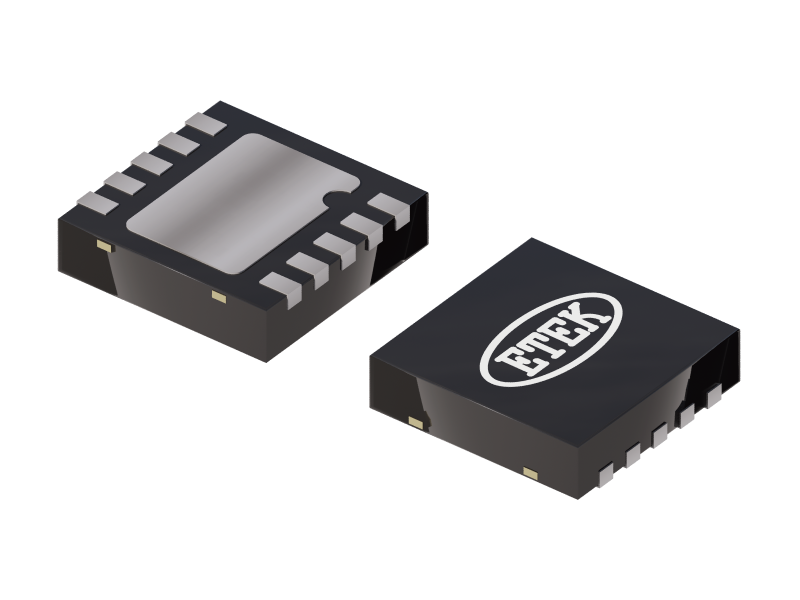

ET51200 | Sink and Source DDR Termination Regulator | 2.375~5.5 | 1.1~3.5 | ADJ | 2000 | - | 600 | - | - | DFN10(3.0X3.0) |
|

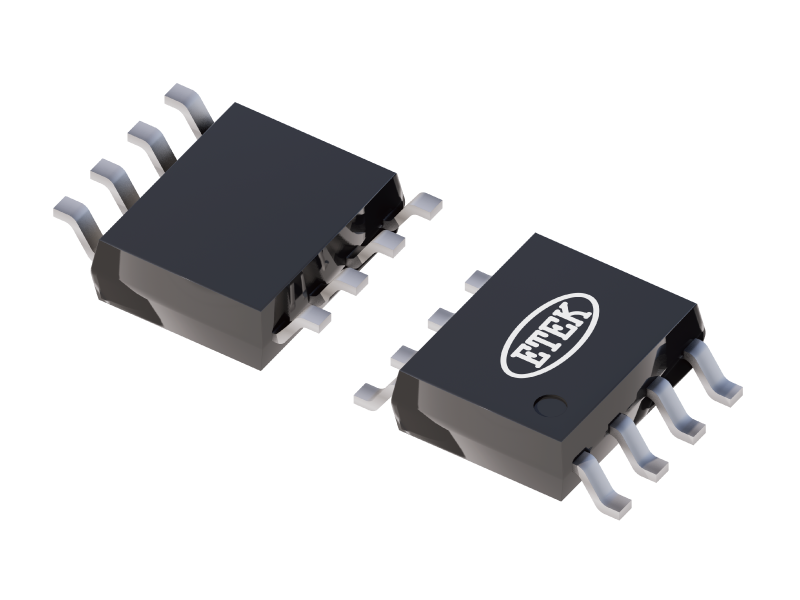

ET5C208M | 3000mA, Very Low Dropout, With PG | 2.2~5.5 | 0.8~5.5 | ADJ/0.8~3.6 | 3000 | 135@1.0V | 1300 | 80 | 30×VOUT | ESOP8 |
|
ET5C108 | 3000mA,Very Low Dropout, With PG, SS | 2.2~5.5 | 0.8~5.5 | ADJ/0.8~3.6 | 3000 | 95@1.0V | 1300 | 75 | 18×VOUT | DFN20(3.0X3.0) |
|

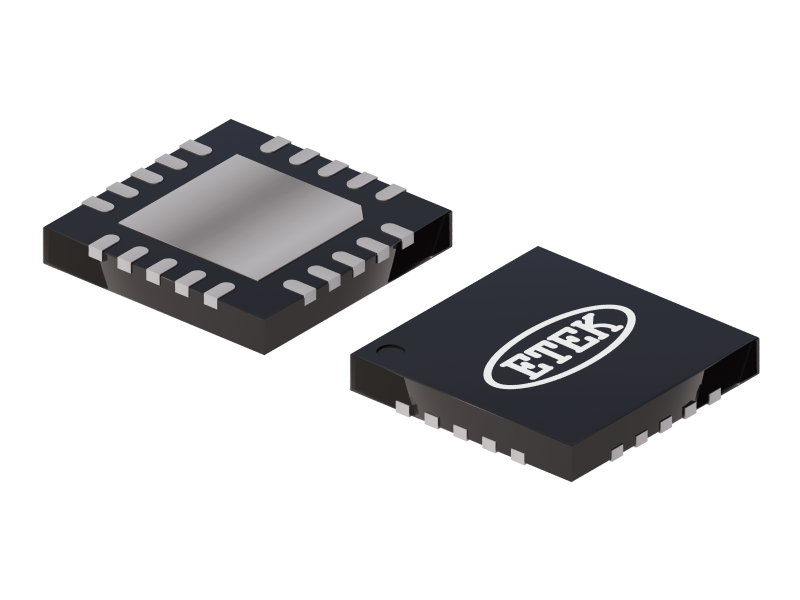

ET5D001YB | 4000mA, Low Noise(6uV), With PG, SS | 3.0~5.5 | 1.1~5.5 | ADJ/0.8~5.0 | 4000 | 170@0.8V | 2300 | 40 | 6.0 | QFN20(5.0X5.0) |
|
ET5C001YB | 3000mA, Low Noise(6uV), With PG, SS | 3.0~5.5 | 1.1~5.5 | ADJ/0.8~5.0 | 3000 | 130@0.8V | 2300 | 40 | 6.0 | QFN20(5.0X5.0) |
|
ET5B001YB | 2000mA, Low Noise(6uV), With PG, SS | 3.0~5.5 | 1.1~5.5 | ADJ/0.8~5.0 | 2000 | 125@0.8V | 2300 | 40 | 6.0 | QFN20(5.0X5.0) |
|

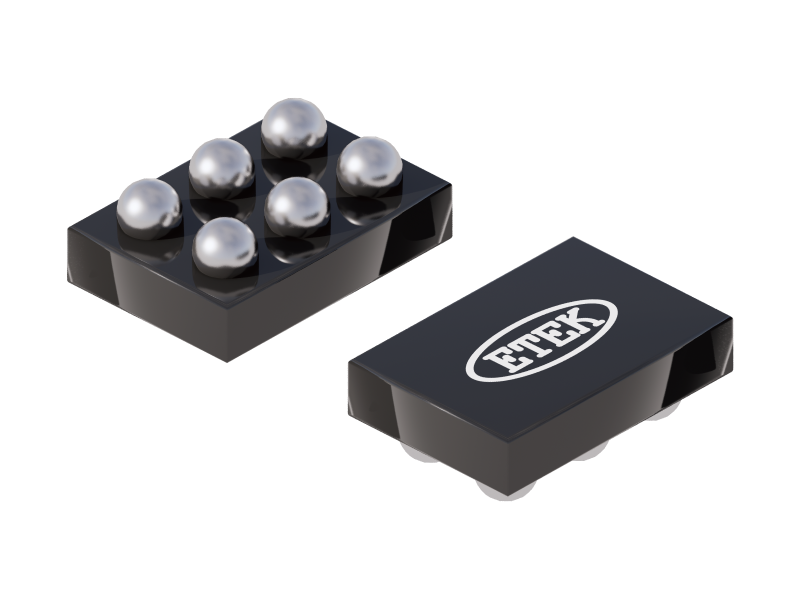

ET5A5ADJZB | 1500mA, Dual-rail Very Low Dropout | 2.7~5.5 | 0.5~VBIAS | ADJ/0.5~3.0 | 1500 | 120@1.0V | 60 | 75 | 60×VOUT | WLCSP6(0.4 Pitch) |
|
ET5A4ADJZB | 1500mA, Dual-rail Very Low Dropout | 2.7~5.5 | 0.5~VBIAS | ADJ/0.5~3.0 | 1500 | 80@1.0V | 60 | 70 | 30×VOUT | WLCSP6(0.4 Pitch) |
|
ET5A3ADJZB | 1000mA, Dual-rail Very Low Dropout | 3.0~5.5 | 0.5~5.5 | ADJ/0.5~3.0 | 1000 | 40@1.05V | 100 | 75 | 30×VOUT | WLCSP6(0.4 Pitch) |
|
ET5A2ADJZB | 1000mA, Dual-rail Very Low Dropout | 3.0~5.5 | 0.5~5.5 | ADJ/0.5~3.0 | 1000 | 40@1.05V | 35 | 75 | 30×VOUT | WLCSP6(0.4 Pitch) |
|

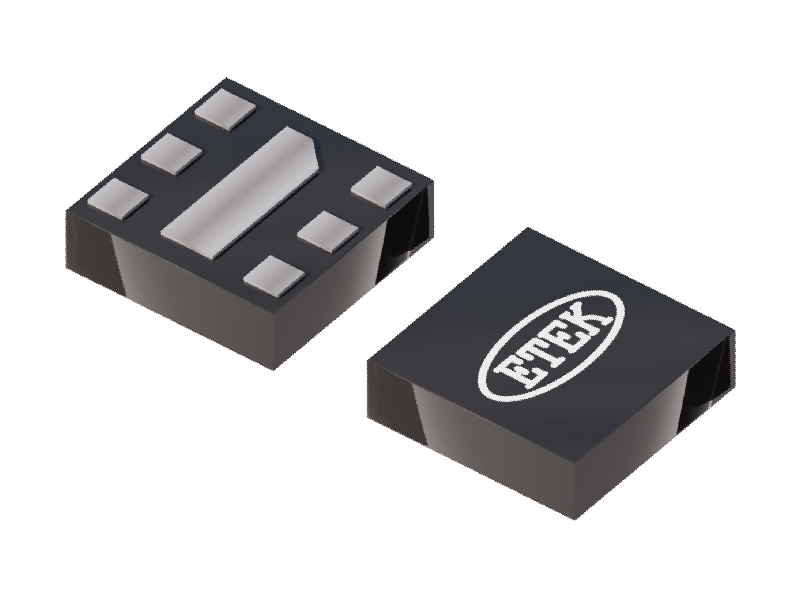

ET557ADJY1B | 800mA, Dual-rail Very Low Dropout | 2.7~5.5 | 0.8~5.5 | ADJ/0.8~3.6 | 800 | 220@1.2V | 80 | 80 | 45×VOUT | DFN6(1.2X1.2) |
|
ET554ADJY1B | 800mA, Dual-rail Very Low Dropout | 2.7~5.5 | 1.0~5.5 | ADJ/1.0~3.6 | 800 | 220@1.2V | 80 | 80 | 45×VOUT | DFN6(1.2X1.2) |
|
ET551ADJY1B | 800mA, Dual-rail Very Low Dropout | 2.7~5.5 | 0.8~5.5 | ADJ/0.8~3.6 | 800 | 240@1.2V | 80 | 80 | 50×VOUT | DFN6(1.2X1.2) |
|

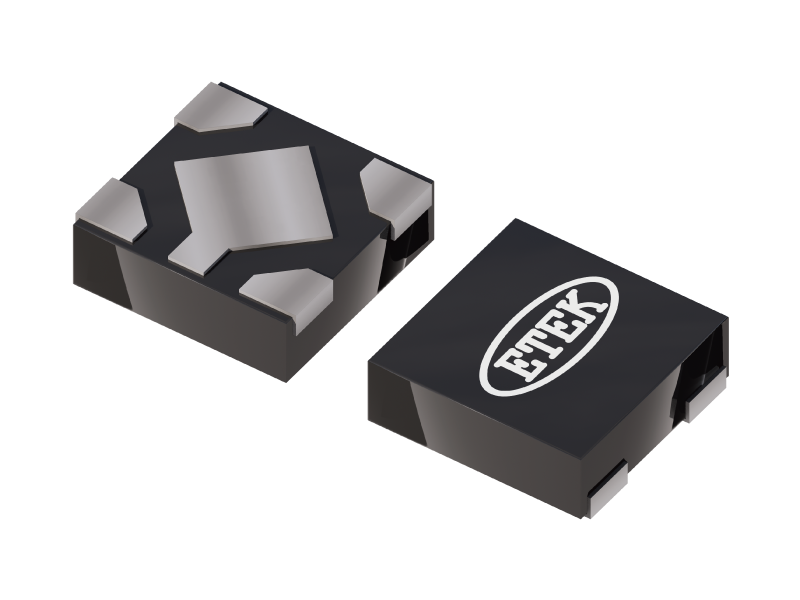

ET551XXYB | 800mA, Dual-rail Very Low Dropout，Fixed Output | 2.4~5.5 | 0.8~5.5 | 1.05/1.1/1.2 | 800 | 200@1.1V | 80 | 80 | 50×VOUT | DFN4(1.2X1.2) |
