Automotive ET9668
General Description
ET9668 can disconnect the systems from its output pin(OUT) in case wrong input operating conditions are detected. The input voltage can be up to 28V. The internal overvoltage thresholds (OVLO) can be selected by OVLO_SEL pin. When OVLO_SEL is HIGH, the overvoltage point is 21.9V, and the overvoltage point when OVLO_SEL is grounded is 12.4V. ET9668 has internal Thermal-Shutdown Protection function.
The device is packaged in advanced full-Green compliant Wafer Level Chip Scale Packaging (WLCSP20).
Features
6A Continuous Current Capability
Typical RON: 9mΩ N-Channel MOSFET
VIN Operating Range: 2.8V to 28V
Overvoltage Lockout : OVLO=21.9V(OVLO_SEL=HIGH) / 12.4V(OVLO_SEL=GND)
Overvoltage-Protection Response Time: 50ns(MAX)
Startup Debounce Time: 15ms(TYP)
Internal Thermal-Shutdown Protection
Special OTG mode
Surge Immunity to ±200V
Active Discharge Path at VBUS
ESD Protected(HBM):±4KV
Small WLCSP20 Package (ball pitch=0.4mm)
Applications
Smartphones, Tablet PC
HDD, Storage and Solid State Memory Devices
Portable Media Devices, Laptop & MID
SLR Digital Cameras
GPS and Navigation Equipment
Industrial Handheld and Enterprise Equipment
Pin Configuration

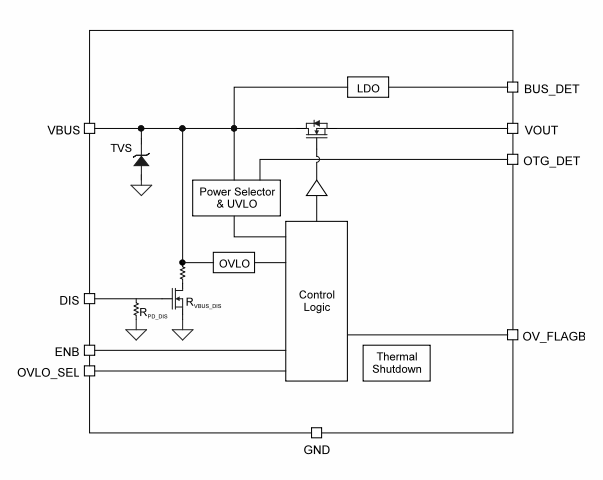

Block Diagram
Application Circuits
