Automotive ET9553M
General Description
ET9553M can disconnect the systems from its output pin(OUT) in case wrong input operating conditions are detected. The input voltage can be up to 28V. The internal overvoltage threshold (OVLO) is 10V, and also can be adjusted by external resistors. ET9553M has internal Thermal-Shutdown Protection function.
The device is packaged in advanced full-Green compliant Wafer Level Chip Scale Packaging (WLCSP12).
Features
4.8A Continuous Current Capability
Typical RON: 35mΩ N-Channel MOSFET
VIN Operating Range: 2.5V to 28V
Overvoltage Lockout: VOVLO=10V(TYP)
Overvoltage-Protection Response Time：50ns(TYP)
OVLO Threshold Range: +4V to +24V
Startup Debounce Time:21ms(TYP)
Internal Thermal-Shutdown Protection
Surge immunity to ±100V
ESD Protected(HBM) to ±4KV
Applications
Smartphones, Tablet PC
HDD, Storage and Solid State Memory Devices
Portable Media Devices, Laptop & MID
SLR Digital Cameras
GPS and Navigation Equipment
Industrial Handheld and Enterprise Equipment

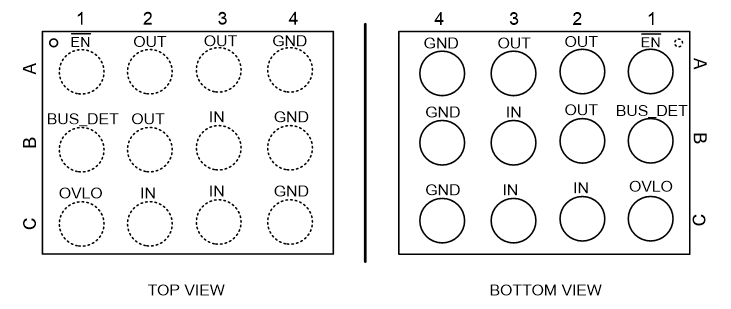

Pin Configuration

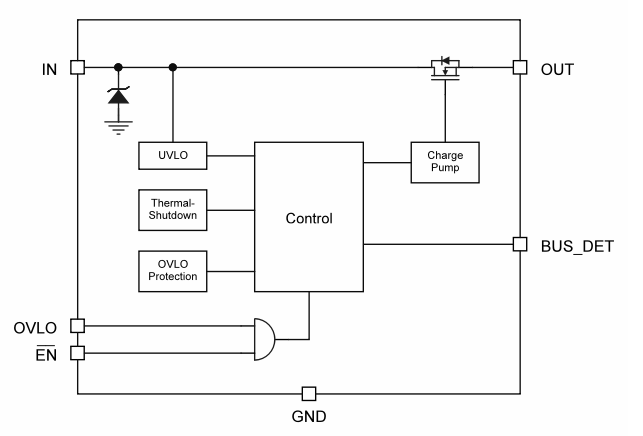

Block Diagram

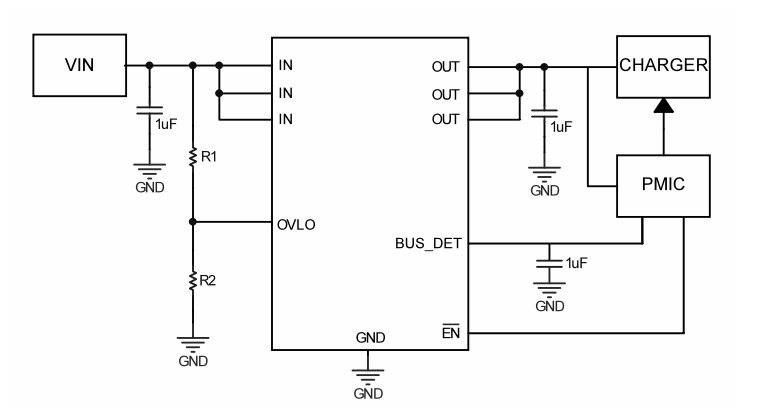

Application Circuits
