Automotive ET6930
General Description
ET6930 is designed for LED display with 96 dots constant current driver. The standard I2C communication protocol is adopted. Internal integration of communication interface, data latch, LED constant current drive module. Especially suitable for small LED display driver, with high brightness, constant output current and other characteristics.
Features
Up to 96 LEDs are supported
Support 1-12 scan application, the maximum application matrix is 8 ×12 (8 SEG × 12 GRID)
Output constant current driver
8 levels of brightness adjustment
I2C communication interface
Built in RC oscillation
Built in power on reset

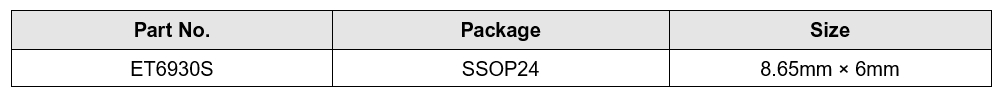

Package: SSOP24 (ET6930S)
Applications
Household appliances, Toy display
Smart portable devices, Smart audio
Pin Configuration

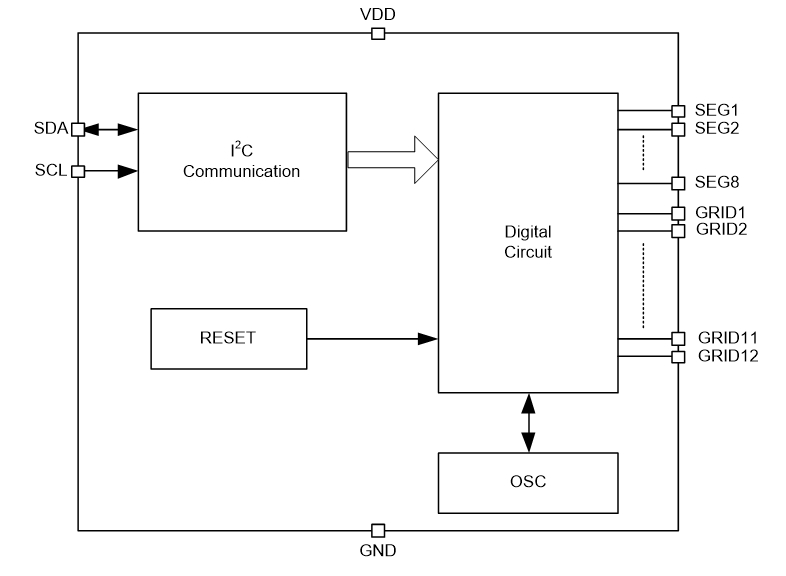

Block Diagram

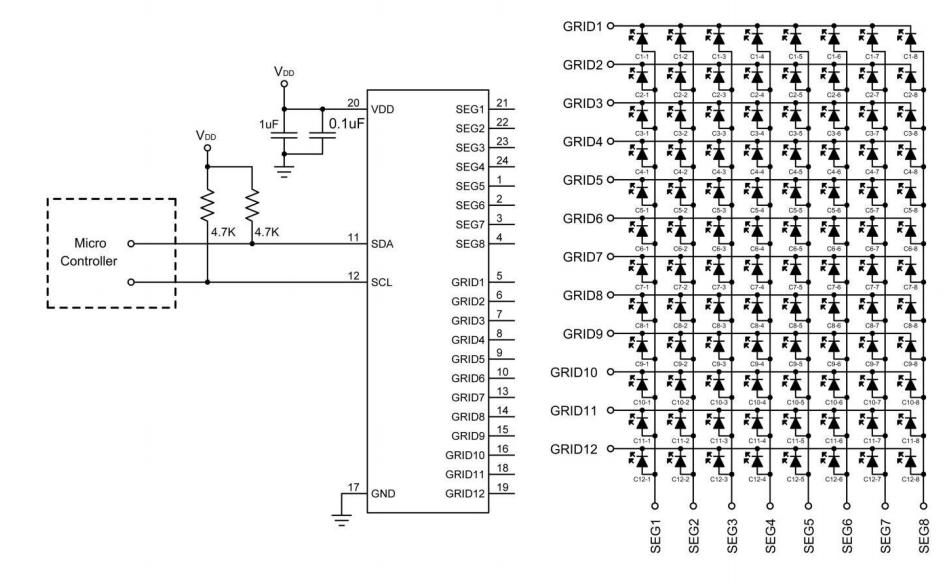

Application Circuits
