General Description
The ET5907 is CMOS-based low-dropout, low-power linear regulator. It’s a 7-channel integrated LDOs for camera applications. Two channels offering max 1200mA with NMOS pass transistor, five channels offering max 400mA with PMOS pass transistor. ET5907 include 1000kHz high speed I2C interface, the function setting is flexible such as Under voltage lockout (UVLO), power sequence, output voltage, output discharge, current limit per channel. The chip enable control support EN pin control and I2C control.
The ET5907 is available in 20-bump, 0.35 mm pitch, Wafer-Level Chip-Scale Package (WLCSP).
Features
LDO1 and LDO2
--VIN12 input voltage range: 1.0V to 2.0V
--Programmable Output Voltage 0.8V to 1.8V in 6mV steps
--Max 1200mA Output Current Capability
-- Ultra Low dropout: Typ.80mV at 800mA, 1.05V Output
LDO3~LDO7
--VIN34/VIN5/VIN6/VIN7 input voltage range: 1.9 V to 5.5V
-- Programmable Output Voltage 1.5V to 3.75V in 10mV steps
--Max 400mA Output Current Capability
--Less than 20uV(typ) Noise
--Ultra Low dropout: Typ. 85mV at 300mA, 2.8V Output
Very Low input quiescent current of Typ. 150µA
Operation guaranteed with battery voltage down to 2.7V
Programmable Power Start-Up/Down Sequencing
Built-in thermal Global Shutdown Protection (OTP)
Built-in under Voltage Global Shutdown Protection(UVP)
Built-in over current protection(OCP) and auto-discharging circuit
Built-in under voltage lockout (UVLO)
I²C serial control to program output voltage and features
Package Information:
Applications
Constant-voltage power supply for battery-powered device
Constant-voltage power supply for smartphones, tablets
Constant-voltage power supply for cameras, DVRs, STB and camcorders

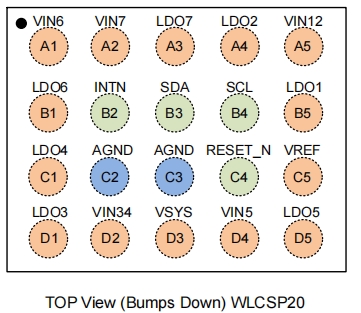

Pin Configuration

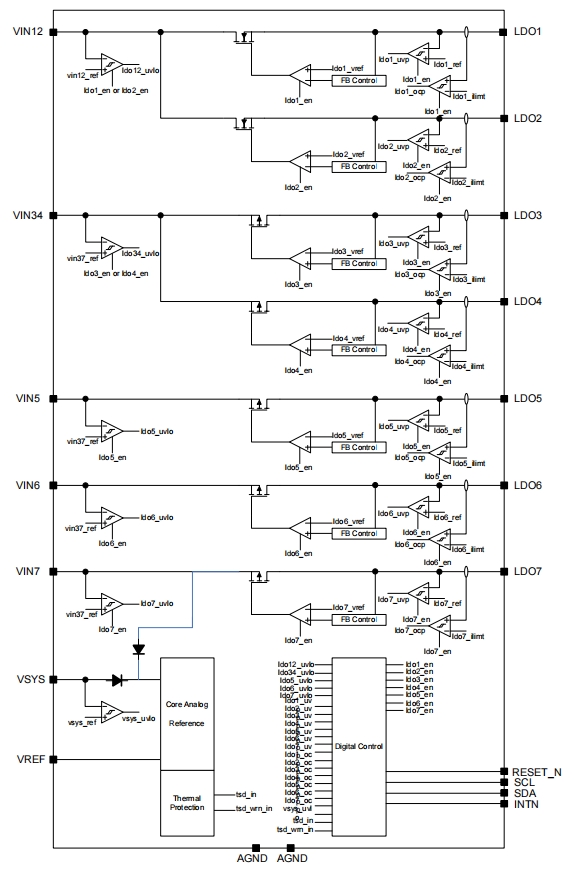

Block Diagram

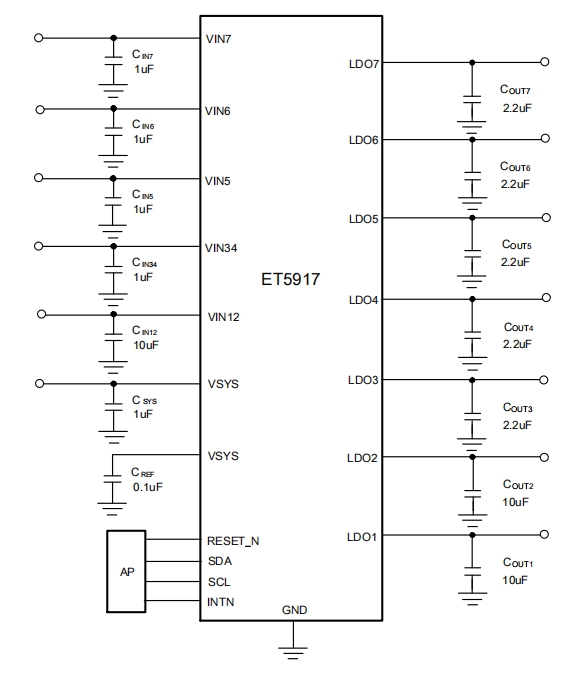

Application Circuits
