车规 ET5C108
General Description
The ET5C108 is a CMOS-based very low dropout voltage regulator, offering 3A with NMOS pass transistor and a separate bias supply voltage (VBIAS). The device provides very stable, accurate output voltage with high ripple rejection and excellent full load transient performance. The ET5C108 consist of an accurate 0.8V internal voltage-reference, an error amplifier, an under-voltage lock-out (UVLO) block, an output current limit circuit and a thermal-shutdown circuit.
The ET5C108 can set the output voltage through external resistor divider with FB pin. With the SS pin, user can fulfill the soft-start function through the external capacitor. A Power Good pin (PG) is also available. The ET5C108 is offered in DFN10(3mm×3mm) package.
Features
Output Current:3.0A
Wide Input Voltage Range: 0.8V to 5.5V
Wide BIAS Voltage Range: 2.2V to 5.5V
Output Voltage Range: 0.8V to 3.6V(externally set)
Dropout Voltage: 95mV at 3A
Open Drain Power Good (PG) Output
Excellent Transient Response
Built-in Soft-start Function
Built-in Current Limit and Thermal Shutdown Protection
Package Information:
Applications
Telecom Industrial and Consumer Equipment
FPGA, DSP and Logic Power Supplies
Switching Power Supply Post Regulation
Specific Start−up Time or Sequencing Requirement Applications

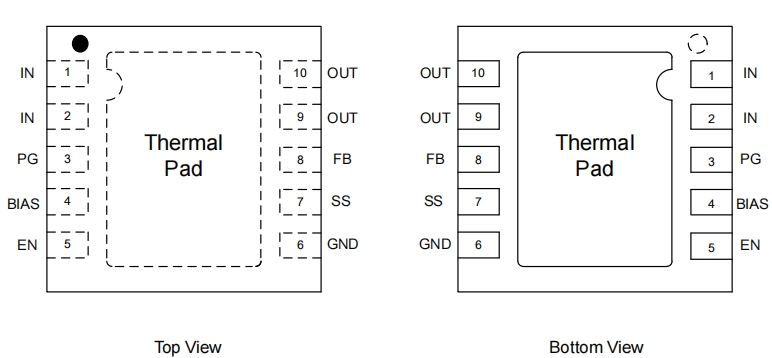

Pin Configuration

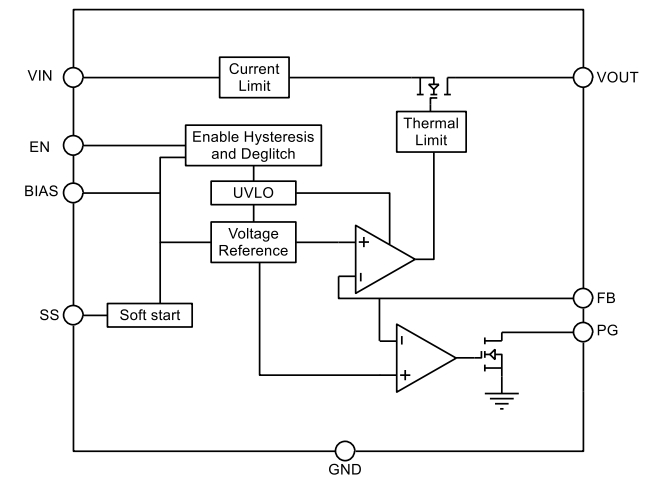

Block Diagram

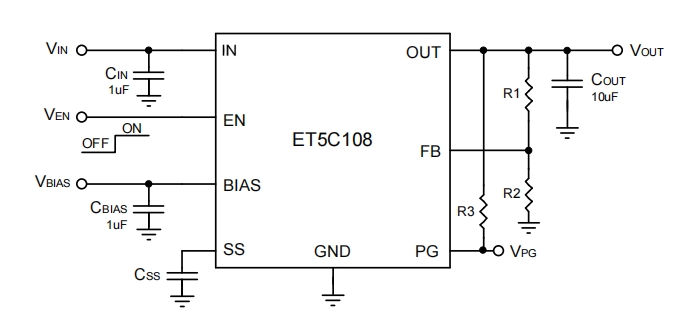

Application Circuits
