车规 ET5A5ADJZB
General Description
The ET5A5ADJZB is CMOS-based low-dropout, low-power linear regulators, offering 1500mA with NMOS pass transistor and a separate bias supply voltage(VBIAS). The device provides very stable, accurate output voltage with low noise, high ripple rejection and low supply current suitable for space constrained, noise sensitive application. ET5A5ADJZB consists of an accurate voltage-reference block, an error amplifier, a thermal-shutdown circuit, and a current limit circuit.
Features
Wide VIN Voltage Range: VOUT+VDROP to 5.5V&
Wide VBIAS Voltage Range: 2.7V to 5.5V
Output Voltage Range: 0.5V to 3.0V
Very Low VBIAS Input Current: 60µA
Ultra Low Dropout: 120mV at 1.5A@VOUT=1V
Built-in Over-current Protection and Thermal Shutdown Circuit
Built-in Auto-discharging Circuit (optional)
Built-in Under Voltage Lock-out
Package Information:
Applications
Constant-voltage power supply for battery-powered device
Constant-voltage power supply for smartphones, tablets
Constant-voltage power supply for cameras, DVRs, STB and camcorders
Pin Configuration

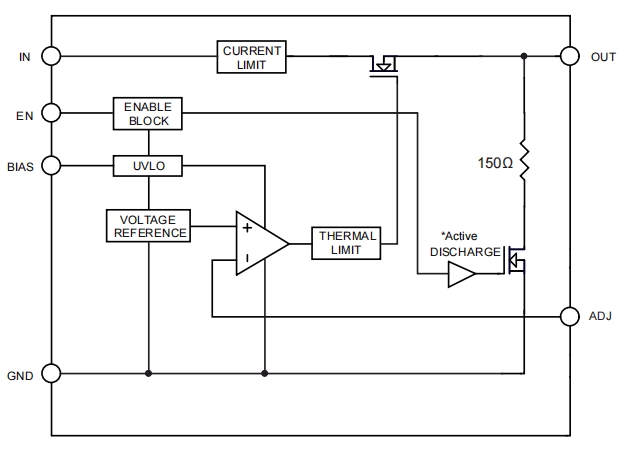

Block Diagram

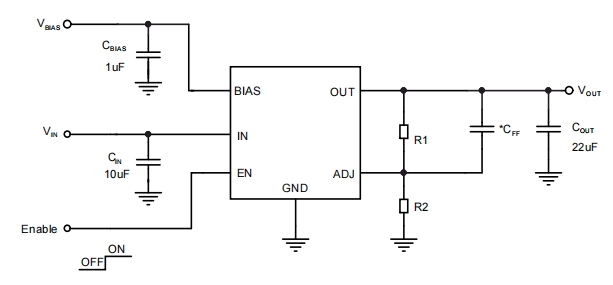

Application Circuits
