车规 ET5A0XX
General Description
ET5A0XX series are the fixed output 1A LDO with auto discharge function, It uses an advanced CMOS process and a PMOSFET pass device to achieve high power supply rejection ratio (PSRR) ,low noise, very low dropout, fast start-up and excellent output accuracy.
ET5A0XX series are stable with a 1.0～10μF ceramic output capacitor, uses a precision voltage reference and feedback loop to achieve excellent Regulation and transient response. It can choose the output current between 500mA and 1A by setting the LCON pin to high or low (only some package have this function).
ET5A0XX series are offered SOT23-5, SOT89-5,SOT-223, DNF6(2×2), DNF8(1.2×1.6),HSOP8 packages
Features
Wide input voltage range from 1.8V to 5.5V
Output current 500mA/1A optional
Output Voltage is 1.2V 1.75V 1.8V 2.8V 3.0V 3.3V ADJ(0.75V to 4.3V) etc
Low IQ is typical 110µA
Excellent load/line transient response
Low dropout voltage is 135mV@1A/3.3V output current
Built-in over-current protection and thermal shutdown circuit
Built-in inrush current suppression circuit and current limit circuit
Reverse current protection
Applications
Constant-voltage power supply for battery-powered device
Constant-voltage power supply for TV, notebook PC and home electric appliance
Constant-voltage power supply for portable equipment
Label Information

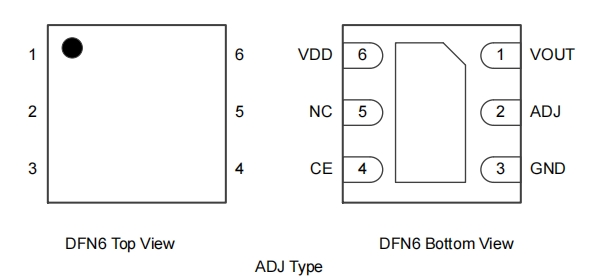

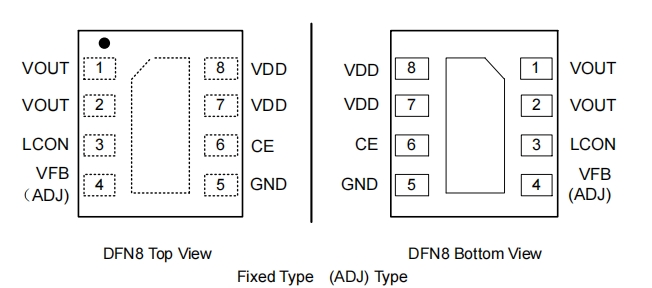

Pin Configuration

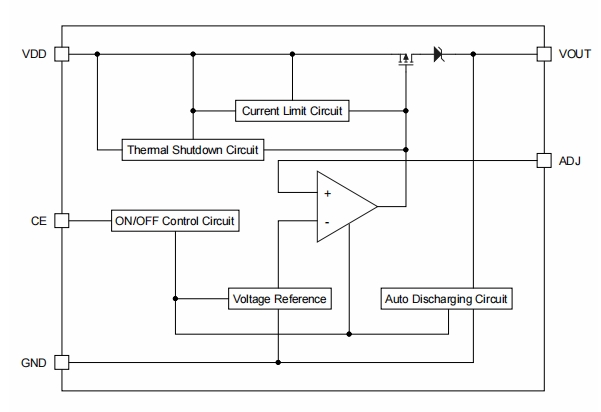

Block Diagram

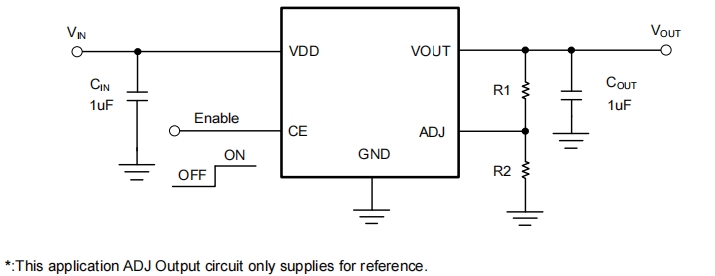

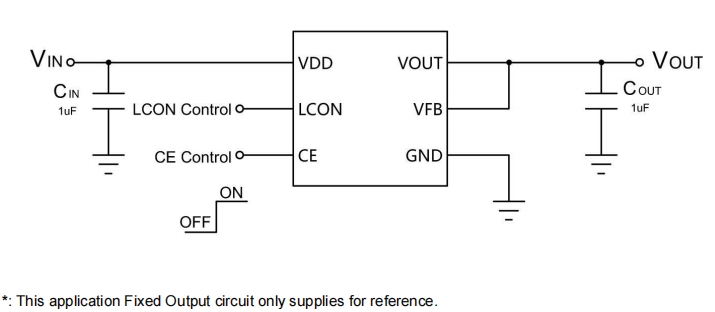

Application Circuits
