车规 ET536XXYB
General Description
The ET536XX family are the high performance 300mA LDO with auto discharge function, It uses an advanced CMOS process and a PMOSFET pass device to achieve very high power supply rejection ratio (PSRR) ,ultra low noise, very low dropout ,very low ground current, fast start-up and excellent output accuracy.
The ET536XX family are stable with a 1.0μF ceramic input and output capacitor, uses a precision voltage reference and feedback loop to achieve high excellent Regulation and transient response.
Features
Wide input voltage range from 1.1V to 6.0V
Up to 300mA load current
Standard fixed output voltage options are 1.05V, 1.1V, 1.2V, 1.8V, 2.2V, 2.8V, 3.0V, 3.1V, and 3.3V etc
Other output voltage options available on request
Very low IQ is 45µA typical
Ultra Low Dropout: 160mV at 300mA Load @VOUT = 2.8V
Very high PSRR up to 78dB at 1kHz
Ultra low noise is 40uVrms at 1.2V output (load=1mA)
Excellent load/line transient response
Line regulation is 0.5mV typical
With auto discharge function
Part No. and Package
Applications
Smart Phones and Cellular Phones
PDAs
MP3/MP4 Player
Digital Still Cameras
Portable instruments

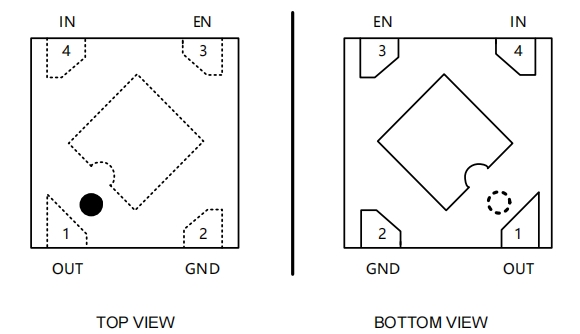

Pin Configuration

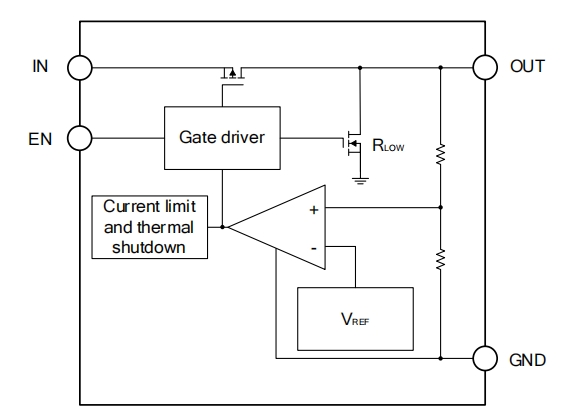

Block Diagram

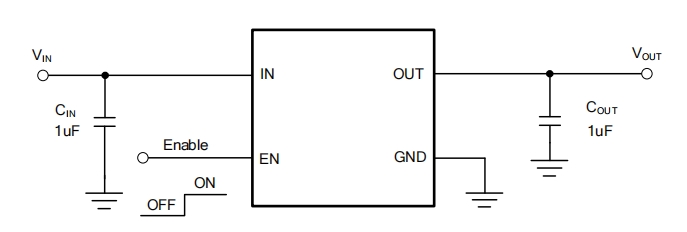

Application Circuits
