ET516XX
General Description

The ET516XX family are the 300mA LDO with auto discharge function. It uses an advanced CMOS process and a PMOSFET pass device to achieve high power supply rejection ratio (PSRR), low noise, low dropout, low ground current, fast start-up and excellent output accuracy.
The ET516XX family are stable with a 1.0μF ceramic output capacitor, uses a precision voltage reference and feedback loop to achieve excellent Regulation and transient response.
The ET516XX family offered in a small SOT23-5 and DFN4 package, which are ideal for small form factor portable equipment.

Features
  • Wide Input Voltage Range from 1.9V to 5.5V

  • Up to 300mA Load Current

  • Standard Fixed Output Voltage :0.8V,1.0V,1.1V,1.2V, 1.5V, 1.8V, 2.4V, 2.5V, 2.8V, 2.85V, 2.9V, 3.0V and 3.3V etc.

  • Very Low IQ is 45µA typical

  • Low Dropout is typical 200mV@2.8V at 300mA Load

  • Very High PSRR: 75dB at 1KHz

  • Very Low Noise is 40uVrms at 1.2V output

  • Excellent Load/Line Transient Response

  • With Auto Discharging Function

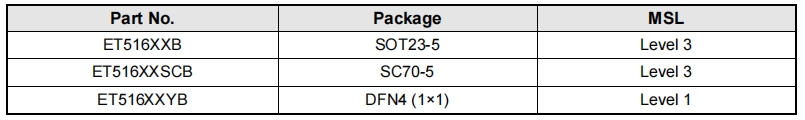

  • Package Information:


Applications
  • Smart Phones and Cellular Phones

  • Digital Still Cameras

  • Portable instrument

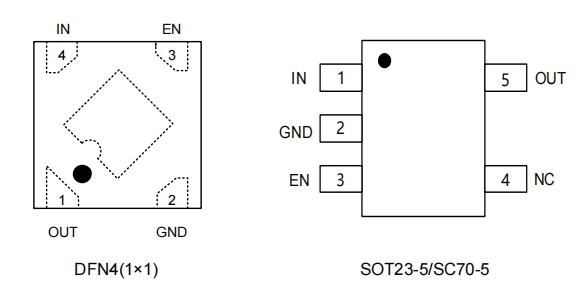

Pin Configuration

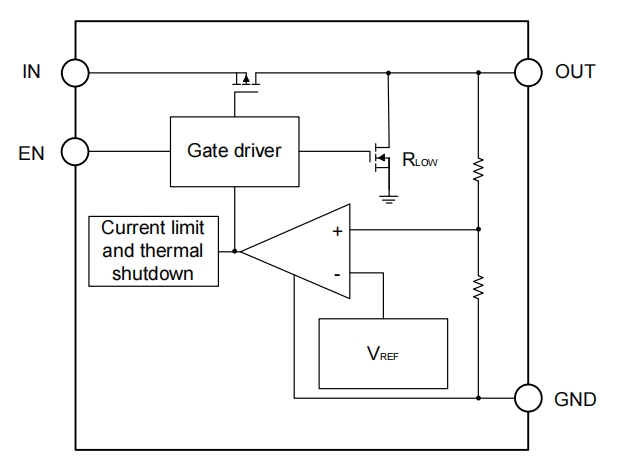

Block Diagram

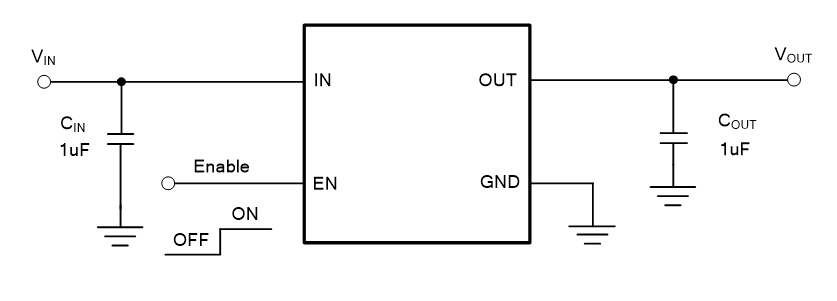

Application Circuits
