车规 ET634XX
General Description
The ET634XX series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of type 0.8uA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.
The ET634XX family offered in small SOT23-5, DFN4(1mm×1mm) and DFN4(0.8mm×0.8mm) packages.
Features
Operating Input Voltage Range from 1.8V to 5.5V
Standard Fixed Output Voltage: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V and 3.6V etc.
Ultra-Low Quiescent Current Typical 0.8uA
Low Dropout is Typical 330mV at 250mA@VOUT=3.0V
High Output Voltage Accuracy ±2%
Stable with Ceramic Capacitors 0.1uF
Over-Current Protection
Thermal Shutdown Protection
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Auto-Discharging Function

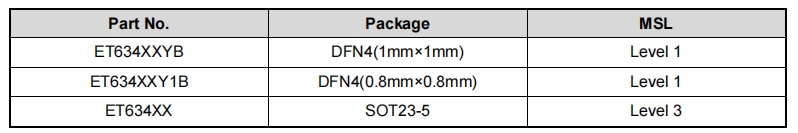

Package Information:
Applications
Battery Powered Equipments
Portable Communication Equipments
Cameras, Image Sensors and Camcorders
Label Information

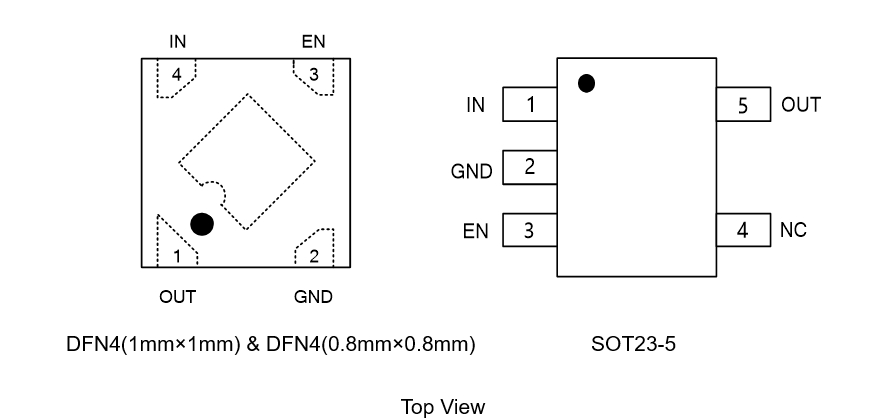

Pin Configuration

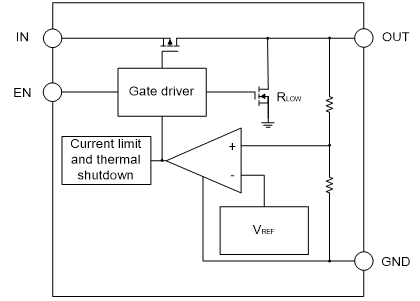

Block Diagram

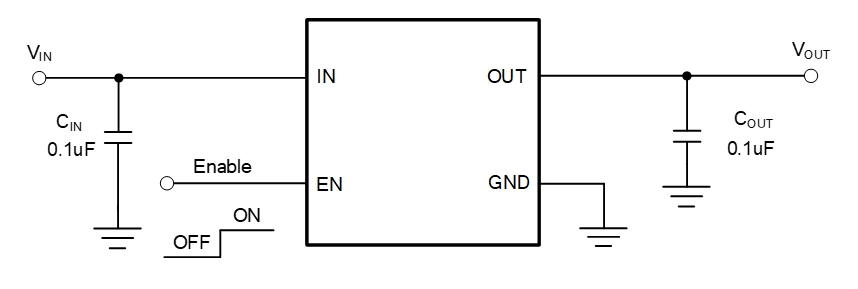

Application Circuits
