车规 ET632XX
General Description
The ET632XX series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of type 2.0uA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.
The ET632XX series are available in the DFN4 or SOT23-5 package.
Features
Operating Input Voltage Range From 2.2V to 5.5V
Output Voltage Range From 1.1V to 3.6V (0.05V Steps)
Ultra-Low Quiescent Current Typical 2.0uA
Low Dropout is Typical 450mV at 300mA@VOUT=1.8V
High Output Voltage Accuracy ±2%
Stable with Ceramic Capacitors 1uF
Over-Current Protection
Thermal Shutdown Protection
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

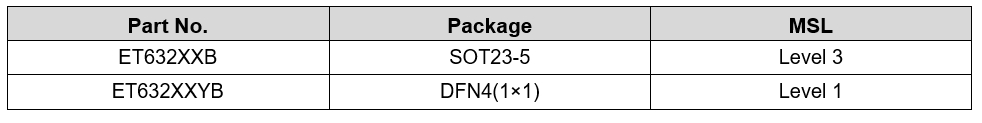

Package Information:
Applications
Battery Powered Equipments
Portable Communication Equipments
Cameras, Image Sensors and Camcorders
Label Information

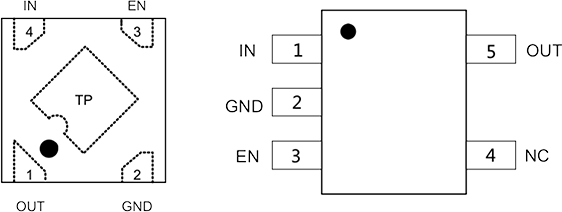

Pin Configuration

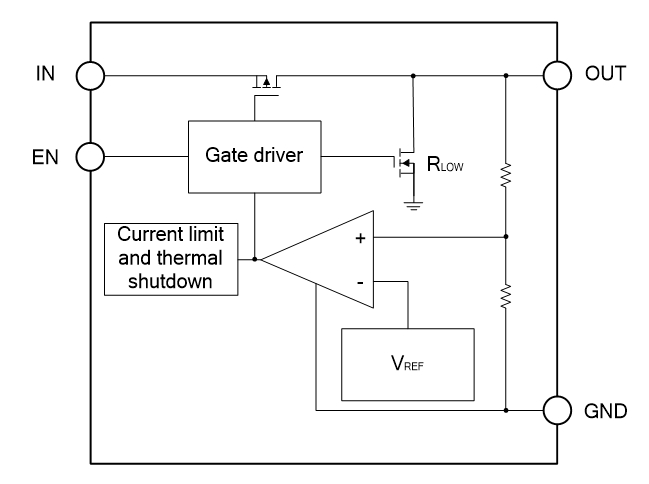

Block Diagram

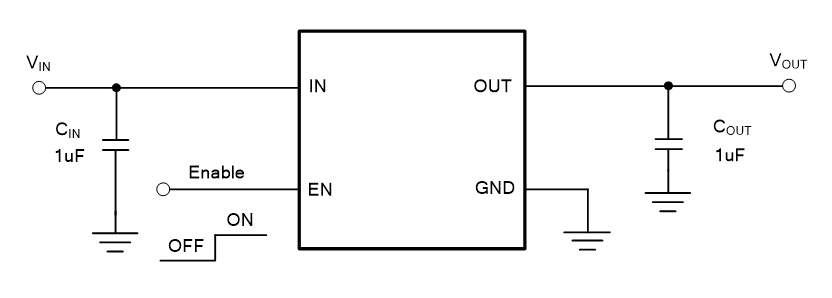

Application Circuits
